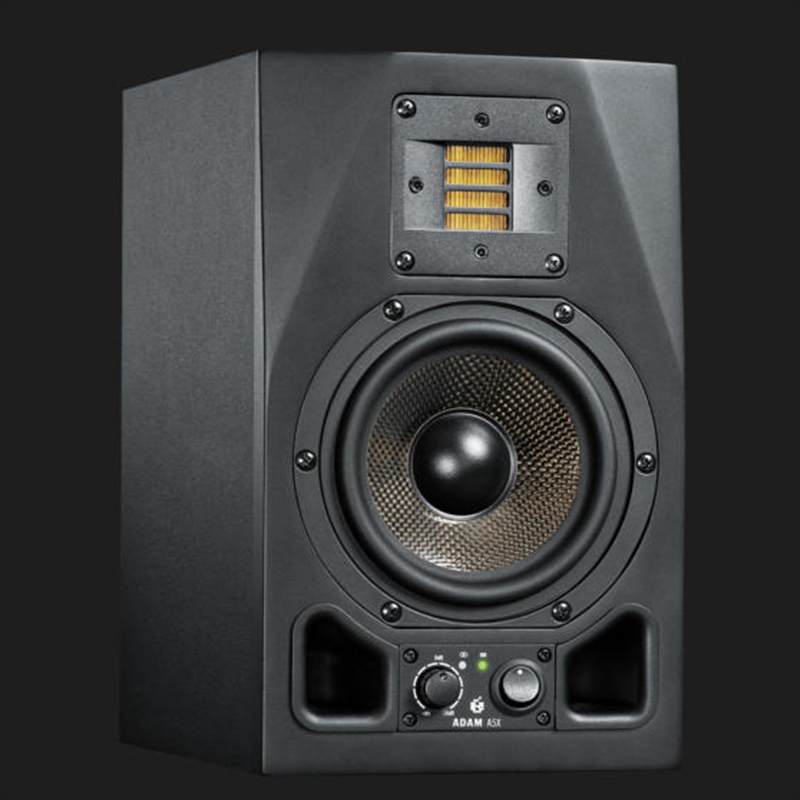

The A5X is popular among professionals working in television studios and remote broadcast vans. The A5X can also be found in numerous home/project studios around the world. Its open, powerful sound makes the A5X a trustworthy and useful tool for multimedia applications as well.
Like all models of the AX-Series, the A5X is equipped with ADAM‘s proprietary X-ART tweeter. One 5.5“ bass/midrange woofer works below 2.5kHz and is driven by a 1.5“ voice coil and a powerful 50 Watt PWM amplifier. Its acoustic qualities give you a clear picture of the smallest changes in your mix and the sonic results. Despite all that it does, the A5X is not fatiguing in long studio sessions.
Specifications
WOOFER
| Number |
1 |
| Basket Ø |
5.5″ (145 mm) |
| Voice Coil Ø |
1.5″ (32 mm) |
| Cone Material |
Carbon/Rohacell/Glass Fiber |
TWEETER
| Number |
1 |
| Type |
X-ART |
| Diaphragm Area |
4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø |
2″ (56 mm) |
| Velocity Transform Ratio |
4:1 |
| Diaphragm Weight |
0.17 g |
BUILT-IN AMPLIFIERS
| Woofer |
1 |
| Type |
PWM |
| Amp. Power RMS / Music |
50 W / 75 W |
| Tweeter |
1 |
| Type |
A/B |
| Amp. Power RMS / Music |
50 W / 75 W |

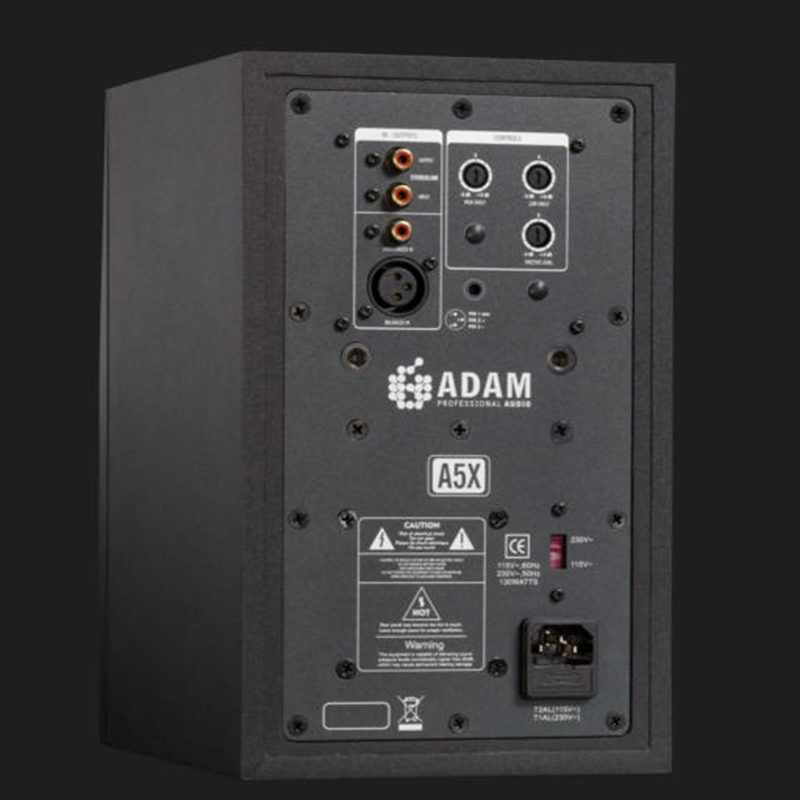

CONTROL PANEL
| Input Sensitivity |
-∞ to +14 dB |
| High Shelf EQ > 5 kHz |
±6 dB |
| Low Shelf EQ < 300 Hz |
±6 dB |
| Tweeter Gain |
±4 dB |
GENERAL DATA
| Frequency Response |
50 Hz – 50 kHz |
| THD 90 dB / 1 m > 100 Hz |
≤0.6 % |
| Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m |
≥102 dB |
| Max. SPL per pair at 1 m |
≥110 dB |
| Crossover Frequencies |
2500 Hz |
| Input Impedance |
30 kOhm |
| Panel |
Front |
| Stereolink |
Yes |
| Weight |
14.6 lb (6,6 kg) |
| Magnetically Shielded |
No |
| Height x Width x Depth |
11″ (280 mm) x 6.5″ (170 mm) x 8.5″ (220 mm) |
| Warranty |
5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents |
Cinch-cable, power cord, manual |
