BOSS KATANA HEAD MK2 100W Guitar Amplifier

Description

BOSS KATANA HEAD MK2 100W Guitar Amplifier

Katana MkII takes the acclaimed Katana guitar amp series to the next level, turbocharging the core platform with more sounds, more effects, and more features. Newly voiced variations are now available for all five amp characters, doubling the tonal options. And the onboard effects categories have been expanded from three to five, providing even more real-time processing to choose from. The usability has been ramped up too, with a power amp input for modelers and multi-FX, easy stereo expansion for dual amp setups, updated editor software, and many other enhancements.

Specifications

Rated Power Output
30 W (Using internal speaker)
100 W (Using external speaker)

Nominal Input Level
INPUT: -10 dBu (1 M ohm)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm)

Speaker
12 cm (5 inches) x 1

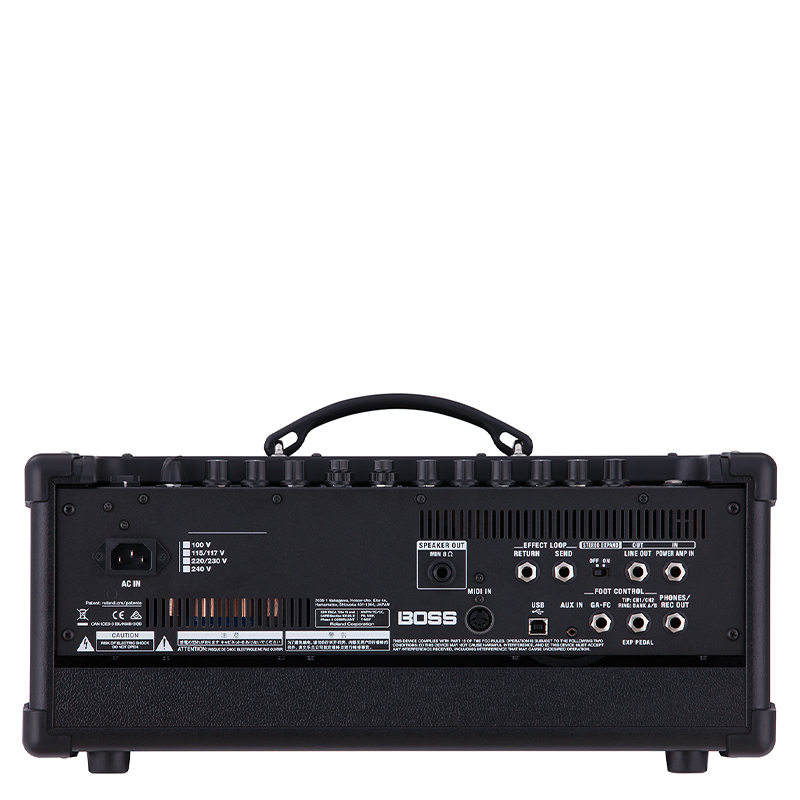

Connectors
INPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
SPEAKER OUT jack: 1/4-inch phone type (Minimum 8 ohm)
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
MIDI IN connector
AC IN jack

Power Consumption
77 W

Accessories
Owner’s manual
Power cord
GA-FC sticker

Options (sold separately)
Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)

SIZE AND WEIGHT(INCLUDE HANDLE AND RUBBER FEETS)

Width
470 mm
18-9/16 inches

Depth
228 mm
9 inches

Height
215 mm
8-1/2 inches

Weight
8.8 kg
19 lbs 7 oz
