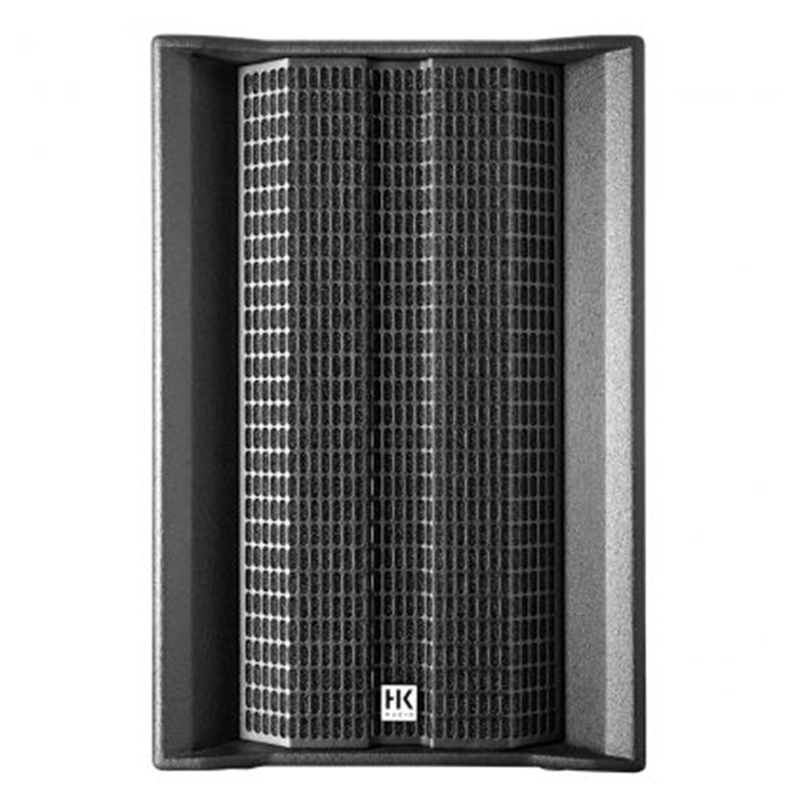

HK AUDIO LINEAR 5 LTS A/Active Full-Range Loudspeaker
In the past, only large line arrays have been capable of projecting the entire frequency spectrum powerfully over 30 m and beyond – until now. The LINEAR 5 LTS A brings true long-throw characteristics to an ultra-compact format. For the user, this means fewer speaker components are required, thus saving valuable truck space. It also makes rigging and ground stacking much easier and faster. This makes the LINEAR 5 LTS A Long-Throw System not only the simplest, but also the most economical solution to achieve the best sound results for events with up to 3,000 people.
Max. SPL @ 10% THD | 133 dB half space (100 Hz – 12 kHz averaged) |
Max. SPL peak @ 10 % THD | 138 dB half space |
Frequency response +/-3 dB | 115 Hz – 14 kHz |
Frequency response -10 dB | 100 Hz – 20 kHz |
Power amp output (peak power) | 1000 W |
Amp type | Class D – biamped |
Active protective circuits | Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter |
Low-/mid speaker | 3x 8″, 2″ voice coil (neodymium) |
HF driver | 1″, 1.75″ voice coil |
Horn directivity | 60° x +5°/-25° MCT horn |
Active crossover frequency | 1.7 kHz FIR X-over with 24 dB/Oct. |

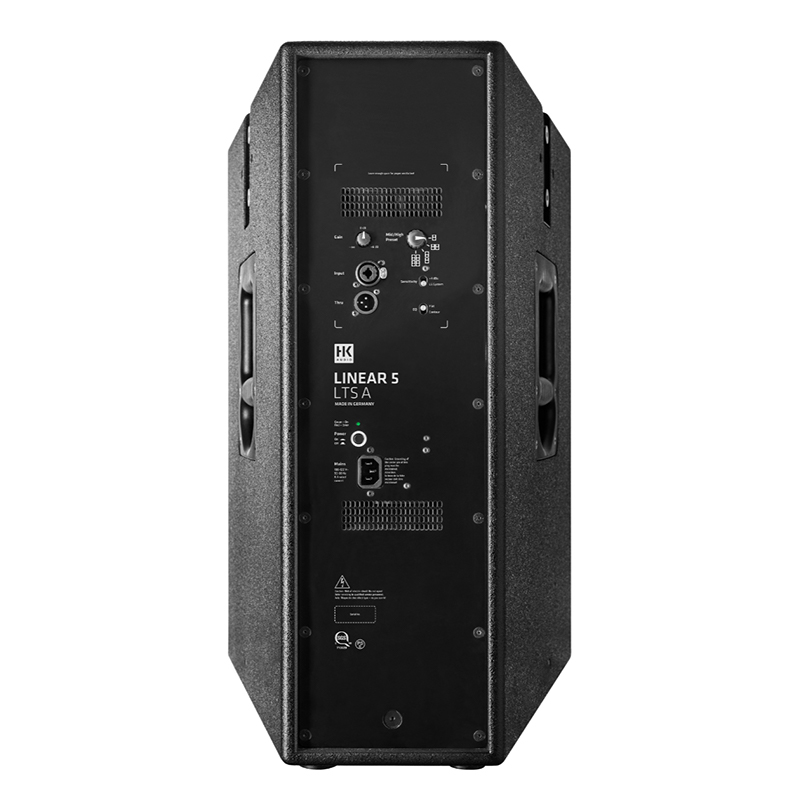

Analog inputs | 1x XLR combo balanced |
Analog outputs | 1x XLR Thru balanced |
Input sensitivity | +4 dBu @ Gain center-notched / L5 System Level |
Filter presets | EQ switch: Flat/Contour |
Mains connector | 1x IEC socket with V-Lock cord retainer |
Power consumption | 3.3 A / 230 V nominal according to EN 60065 |
Pole mount | MonoTilt 0° |
Rigging points | 5x M8 (AP-8) |
Carrying handles | 2x MultiGrip |
Housing | Birch multiplex |
Finish | Black acrylic enamel |
Front grille | 2 mm metal grille backed with black acoustic foam |
Dimensions (WxHxD) | 44 x 68 x 46.1 cm 17-5/16 x 26-25/32 x 18-5/32″ |
Weight | 24.9 kg / 54.9 lbs |
