HPAMP106 HEADPHONES AMP . 6 CHANELS PROEL
€149.00
In stock
Description
HPAMP106 HEADPHONES AMP . 6 CHANELS PROEL
The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.
- 6 independent high-power amp sections suitable for any type of headphones

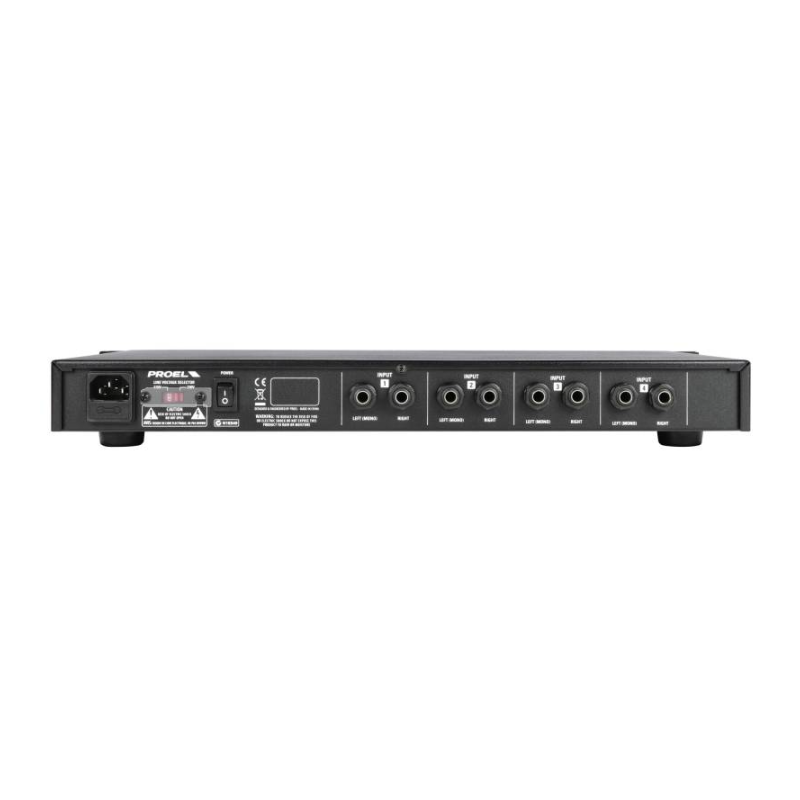

- 4 selectable main stereo/mono inputs with ¼” JACK connectors (REAR panel)

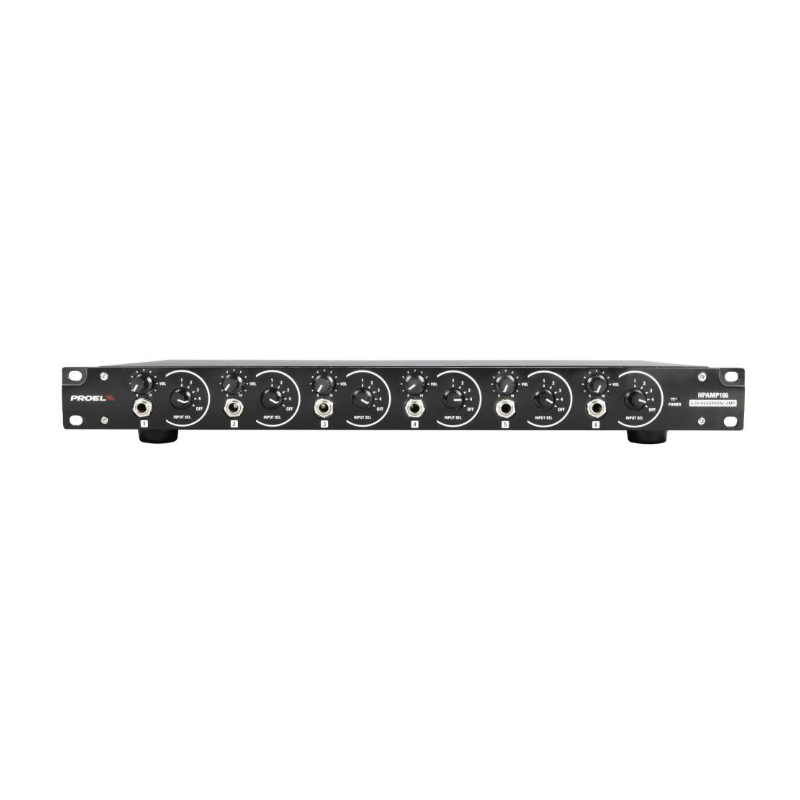

- 6 stereo headphone outputs with individual level controls , input selector and ¼” JACK connectors (FRONT panel)
- 300mW max output level at 32 ohm (per channel)
- Built-in power supply with toroidal transformer and voltage selector
- 19” rack mountable metal chassis
Technical Specs:
| Input Section | |
| Inputs | 4 stereo |
| Input Impedance | 47 Kohm |
| Max Input Level | +25 dBu |
| Connectors | 2 x 1/4″ jack unbalanced (each input) |
| Output Section | |
| Outputs | 6 stereo |
| Maximum output | (2x) 193 mW @ 32 ohm (each) |
| Load Impedance | minimum 16 ohm per channel |
| Max gain | +13 dB each channel |
| Connector | 1/4″ jack stereo (each output) |
| System Performance | |
| Distortion (THD) | 0.02 % |
| Noise | < -98 dBu unweighted |
| Frequency Response | 20 Hz – 20 KHz (-3 dB) |
| General | |
| Controls | OUTPUT LEVEL, INPUT SELECTOR |
| Indicators | Power ON |
| Power supply | Selectable 100-120 VAC, 220-240 VAC, 50-60 Hz |
| Dimensions (W x H x D) | 480 x 44 x 210 mm |
| Weight | 3,9 Kg |
Additional information
| Weight | 38 kg |
|---|---|
| Brand | PROEL |
