Ibanez AW7 Autowah Pedal

Description

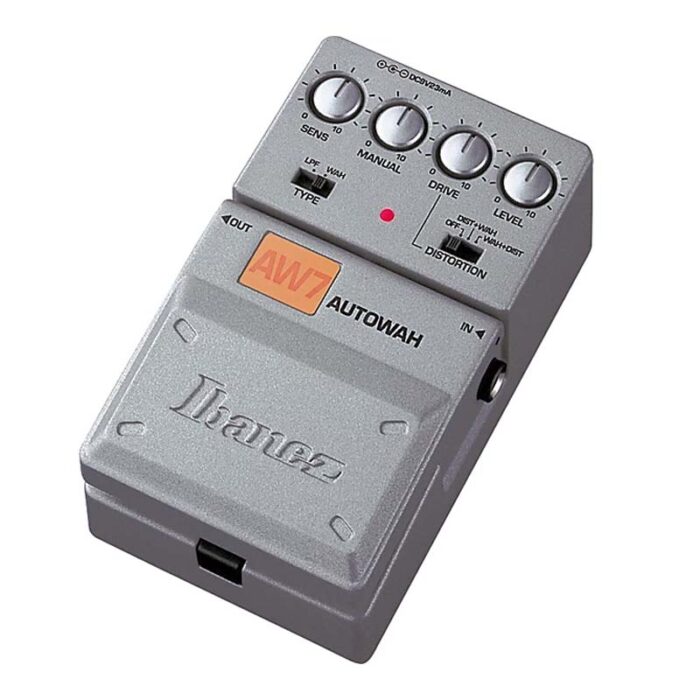

Ibanez AW7 Autowah Pedal

The Ibanez AW7 Autowah is a versatile effects pedal from the early 2000s Tone-Lok series, combining auto-wah and distortion functionalities.​

 Key Features

• Filter Modes: Switch between two filter types:

  • Wah: A band-pass filter that cuts both low and high frequencies.

  • LPF (Low-Pass Filter): Cuts only the high frequencies, preserving the low end.​

• Distortion Options: Three settings allow for flexible distortion integration:

  • Off: No distortion.

  • Dist+Wah: Distortion before the wah effect.

  • Wah/Dist: Wah effect before the distortion.​

• Notch Filter Capability: Setting the sensitivity (Sens) control to 0 transforms the pedal into a fixed wah, emulating the effect of a stationary wah pedal—a technique favored by guitarists like Joe Satriani.​

• Tone-Lok Design: Features retractable “Push-Lok” knobs that lock into place, preventing accidental adjustments during performances.​

 Specifications

• Power: 9V battery or AC adapter (e.g., AC109, AC309, AC509).

• Current Consumption: 23mA maximum.

• Dimensions: 125mm (D) x 75mm (W) x 53mm (H).

• Weight: 460g (including battery).​
