IK MULTIMEDIA iRig Acoustic Stage

135.00

Out of stock

SKU: IRIGACOUSTICSTAGE Category: Brand:

Description

IK MULTIMEDIA iRig Acoustic Stage

iRig Acoustic Stage is the new hi-tech solution for accurately reproducting the full sound of acoustic guitars and other instruments with studio-quality sound live on stage and in the studio.

Features

  • Advanced MEMS microphone clips on to sound hole
  • Preamp/DSP unit
  • Dramatically improves your live acoustic sound
  • 1/4″ AUX input with volume for piezo, magnetic pickups or other onboard electronics
  • 1/4″ Output with level control for amplifier or PA system
  • USB audio out for recording on a computer or mobile device
  • Cancel Feedback with multiple frequency feedback cancelling
  • 6 tone presets
  • Personal instrument calibration
  • Works on any acoustic, acoustic electric or ukulele with round sound hole
  • Phase switch for optimizing dual source sound

Specifications

Dedicated iRig Acoustic Microphone

  • Microphone Type: MEMS
  • Polar Pattern: omnidirectional
  • Frequency Response: 30 Hz – 20 kHz, +/-3dB
  • Max SPL: 130dB SPL
  • Signal-to-Noise Ratio: 101 dBA
  • Maximum soundboard thickness: 4mm / 0.16″

Connections

  • Dedicated iRig Acoustic Microphone Input: 2.5mm / 3/32″ TS mono jack
  • AUX Instrument Input Connector: 6.3mm / 1/4″ TS mono jack
  • AUX Instrument Input Impedance: 1 MOhms
  • Analog Output Connector: 6.3mm / 1/4″ TS mono jack, line-level, low impedance
  • Analog Output Impedance: 50 Ohms (can drive long cables without any loss)
  • Digital Output Connector: micro-USB

DSP/Interface

  • AD and DA Resolution: 32-bit
  • Sampling Rate: 48 kHz
  • Interface Output: USB class compliant audio output via micro-USB port
  • Power: battery power (2xAA), USB bus power
  • Battery Life: approximatively 12 hours of continuous usage with alkaline batteries and 15 hours with rechargeable high quality Ni-MH AA cells (2000 mAh and up)

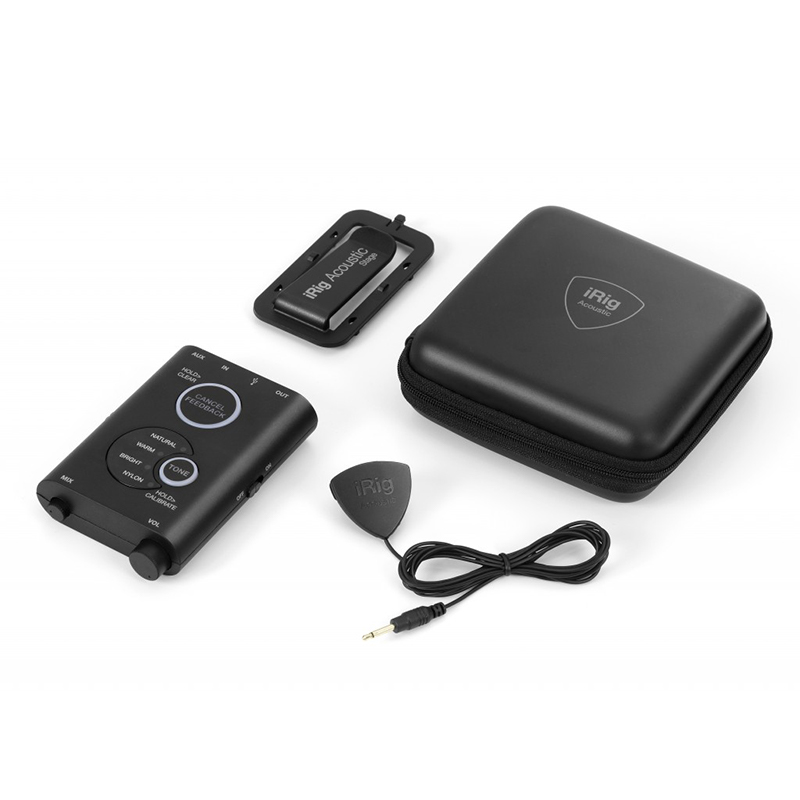

Package includes

  • iRig Acoustic Stage DSP/interface
  • iDedicated iRig Acoustic microphone
  • iBelt clip
  • iCarrying case
  • i2 x 1.5V AA Battery

irigacousticstage_box_content

Dimensions

  • DSP/Interface size: 101mm/3.98″ x 72.3mm/2.85″ x 23mm/0.91″ (belt clip excluded)
  • DSP/Interface weight: 99g/3.49oz (batteries excluded)
  • Microphone size: 31.7mm/1.25″ x 32.2mm/1.27″ x 18.8mm/0.74″
  • Microphone weight: 20g/0.71oz
  • Microphone cable length: 150cm/59.1″

Compatibility

iRig Acoustic Stage can be connected to any amplifier, mixer or PA system using a 6.3mm / 1/4″ TS mono jack cable.

iRig Acoustic Stage can also be used as USB recording interface for Mac/PC, iOS, Android.

Computers

Mac®: Mac OS X 10.6 or later. One free USB port. A USB to Micro-USB cable (sold separately) is required.

Windows®: Fully supports Windows 10 WASAPI for low latency audio. One free USB port. (ASIO4ALL is required on Windows 7 and 8 for low latency audio. A USB to Micro-USB cable sold separately is required.

iOS Devices

Compatible with iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation, iPad mini. iOS 6.0 or later is required.

A USB to Micro-USB cable sold separately and a Lightning to USB Camera Adaptor sold separately are required.

Also compatible with all newer iPhone, iPad and iPod touch models.

Android Devices

Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.

A Micro-USB-OTG to Micro-USB cable sold separately is required.

iRig Acoustic

Additional information

Weight 0.12 kg
Brand
