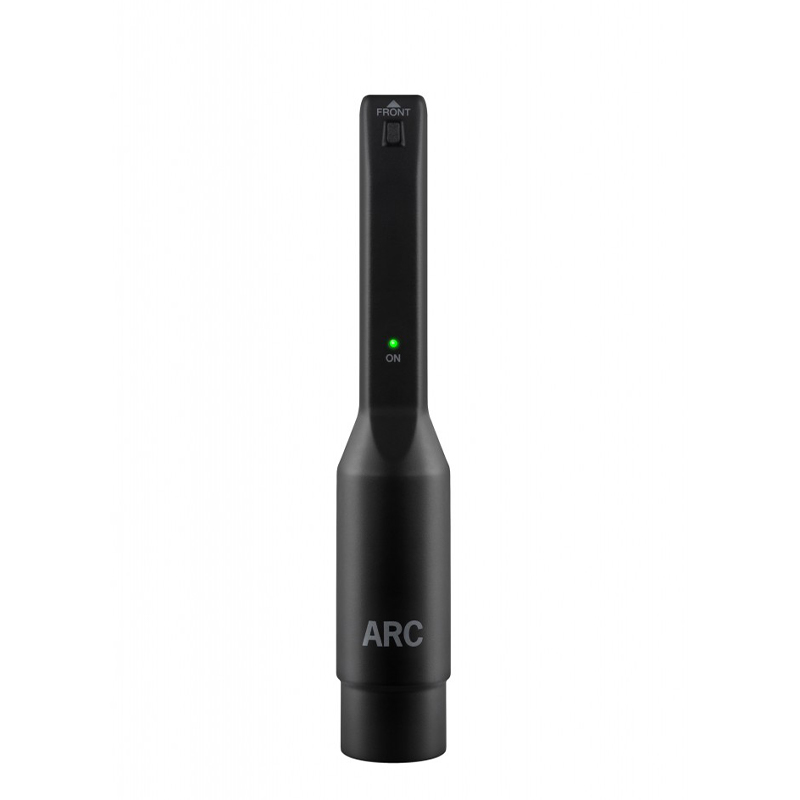

iRig MEMS Condenser Measurement Microphone

98.00

Out of stock

SKU: IRIGMEMS Category: Brand:

Description

iRig MEMS Condenser Measurement Microphone

ARC System 2.5 is the first acoustic correction system that combines a highly accurate MEMS measurement microphone, measurement software and a correction plug-in to improve the audio monitoring quality of your studio in an elegant, affordable and portable solution.

Specifications

Measurement software features

  • Automatic multi-point room measurement system based on Audyssey MultEQ® XT32 technology
  • Measurement precision when used with ARC System microphone: +/- 0.5 dB
  • Saves measurement sets to be opened with the ARC System Correction plug-in

Correction plug-in features

  • Multi-platform high quality frequency and time domain correction processor based on Audyssey MultEQ® XT32 technology
  • Correction precision when used with ARC System microphone: +/- 0.5 dB
  • Correction processor resolution: 32-bit floating point
  • Correction processor supported sampling rates: 32 kHz to 192 kHz
  • Four factory target curves plus four custom target curves to match engineers’ personal tastes
  • Virtual Monitoring feature mimics the sound of various listening devices

Professional measurement microphone features

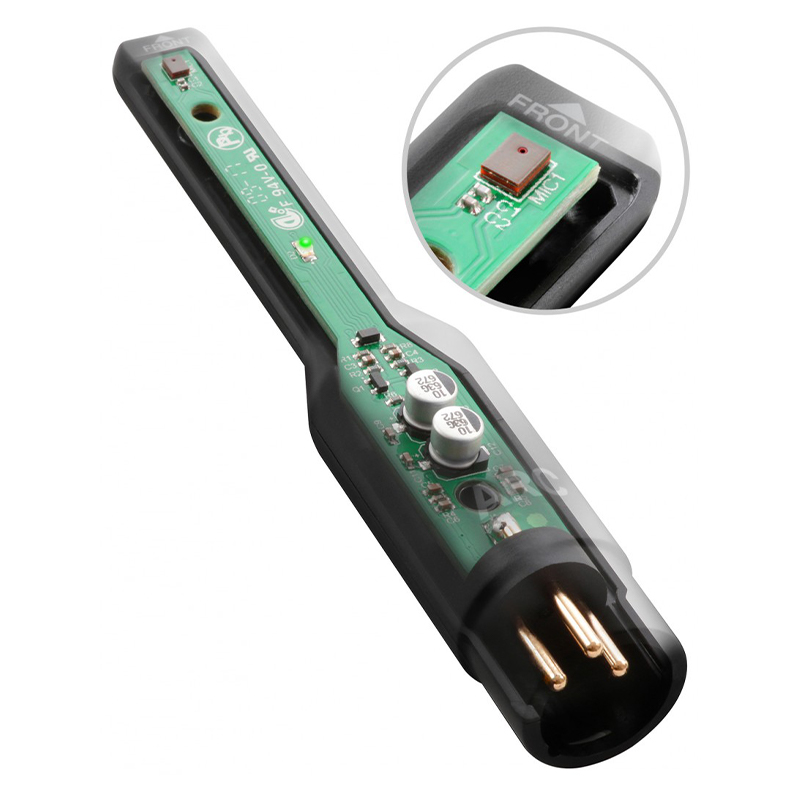

  • Type: precision measurement MEMS microphone
  • Polar pattern: omnidirectional, free field
  • Capsule frequency response: 20-20,000 Hz
  • Calibrated frequency response when used with ARC: 20-20,000 Hz, +/- 0.5 dB
  • Output: transformerless, electronically balanced, 100 ohms output impedance
  • SNR: 65dB (A)
  • Max SPL: 124 dB
  • Phantom power: from 12 to 48V
  • Size: 129.5mm/5.1″ x 23mm/0.91″
  • Weight: 25g/0.88oz

Package includes

  • Professional measurement microphone

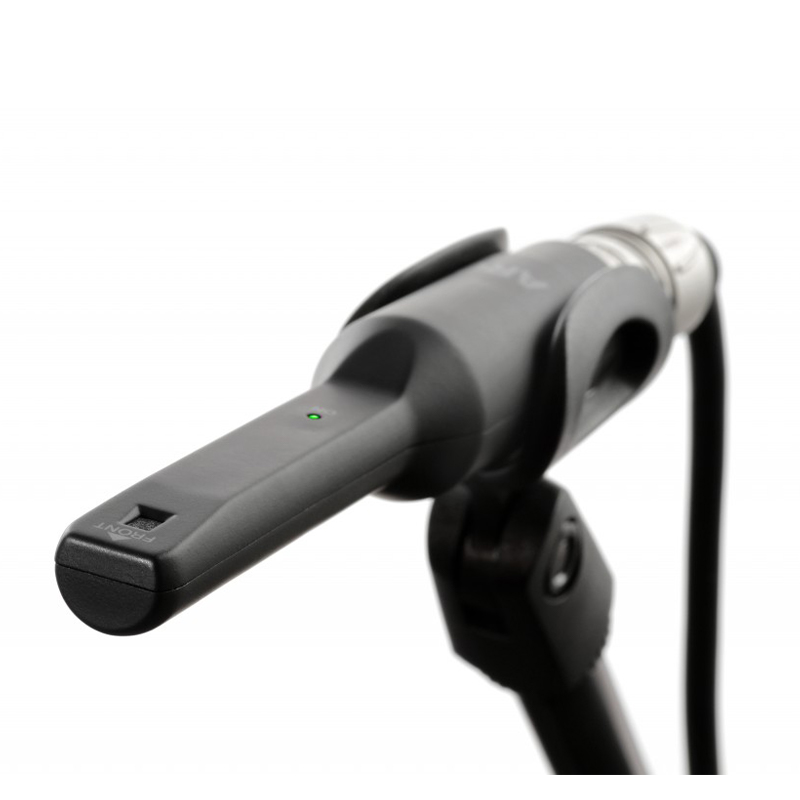

  • Mic clamp
  • Software license

Audyssey MultEQ® XT32 details

MultEQ® XT32 captures acoustical information at multiple locations throughout a listening area in both the time and frequency domains. It uses a sophisticated clustering algorithm to combine this information so that acoustical problems are accurately analyzed. Based on these measurements, MultEQ® XT32 calculates an equalization solution that corrects for both time and frequency response problems in the listening area and also performs a fully automated system setup. The result is clear, well-balanced sound for your studio.

System Requirements

Mac® (32 and 64 bit)

  • Minimal: Intel® Core 2 Duo Processor, 4 GB of RAM, Mac OS® X 10.7 through 10.14. macOS Catalina (10.15) is not supported.
  • Supported Plug-in formats: Audio Units, VST 2, RTAS, AAX.
  • Requires a Core Audio compatible Audio Interface that supports 48 kHz sampling rate (for room measurement).

Note: PPC CPU is no longer supported.

Windows® (32 and 64 bit)

  • Minimal: Intel® Core 2 Duo or AMD Athlon 64 X2 Processor, 4 GB of RAM, Windows 7 (32 bit or 64 bit) or newer.
  • Supported Plug-in formats: VST 2, RTAS, AAX.
  • Requires an ASIO compatible Audio Interface that supports 48 kHz sampling rate (for room measurement).

Additional information

Weight 0.03 kg
