iRig Stream Pro – IK Multimedia

235.00

In stock

SKU: STREAMPRO Category: Brand:

Description

iRig Stream Pro – IK Multimedia

The original iRig Stream offered groundbreaking features that made it an overnight must-have for millions of creators. Now iRig Stream Pro takes your podcasting and streaming to an all-new level.

This 24-bit, 96 kHz audio interface for iPhone, iPad, Android and Mac/PC offers an XLR mic preamp, stereo RCA, TRRS and device inputs (loopback) – plus advanced routing, convenient controls and total portability.

It’s everything you need for professional quality streaming, right in the palm of your hand.

Common

  • Type: 2 in/2out or 4 in/2out
  • Conversion: 24-bit A/D, 24-bit D/A
  • Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Power: USB bus powered. 48V operations with iOS devices require battery or DC IN. When connected to an external PSU (iRig PSU 3A, not included), iRig Stream Pro charges the connected iOS lightning device.
  • Metering: 3x LEDs for overall streaming signal. Peak meter for Mic/Inst input.
  • Device Connection: mini-DIN
  • Dimensions: 123 mm/4.84” x 67 mm/2.63” x 40 mm/1.57”
  • Weight: 146g

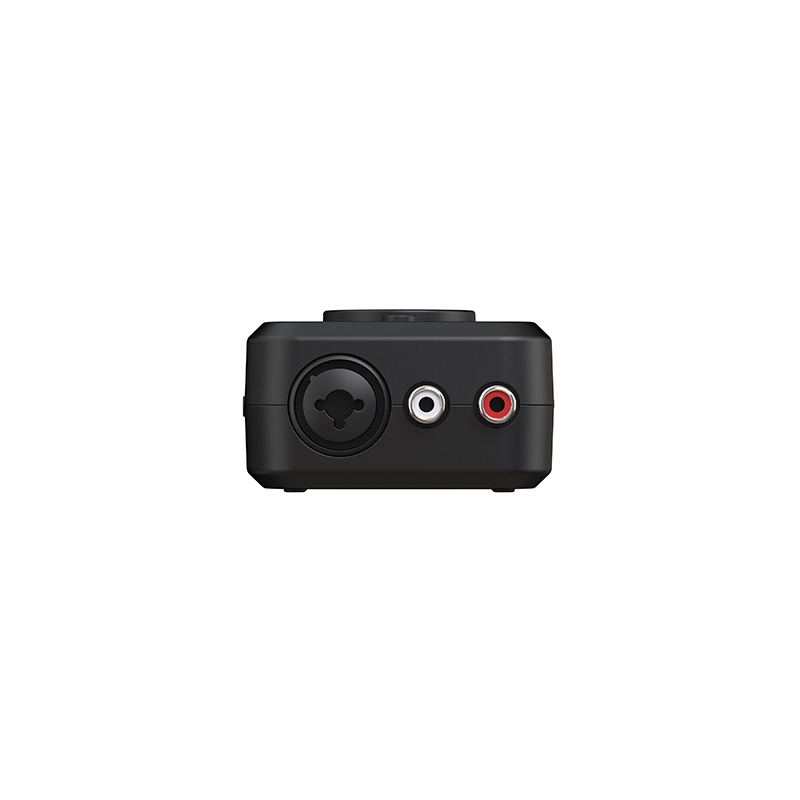

Line input

  • Connector: 2x RCA (unbal.) Left/Right
  • Nominal Input Level: -10 dBV
  • Head Room: 10 dB – Level @ max
  • Input Impedance: 16.5k Ohms
  • Frequency Response: from 20 Hz to 20 kHz (-1.5 dB)

Microphone Input

  • Microphone Input: balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
  • Microphone Input Level: from 3.8 mV RMS to 388 mV RMS
  • Microphone Input Impedance: approx 2 kOhms
  • Analog Gain Range: 40 dB
  • Phantom Power: +48 V ± 4 V
  • Frequency Response:
    from 20 Hz to 20 kHz (-1 dB) Gain @ min
    from 20 Hz to 20 kHz (-3 dB) Gain @ max

Instrument Input

  • Instrument Input: unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
  • Instrument Input Level: from 70 mV RMS to 1.8 V RMS
  • Instrument Input Impedance: 1M Ohms
  • Analog Gain Range: 28 dB
  • Frequency Response:
    from 20 Hz to 20 kHz (-1 dB) Gain @ min
    from 20 Hz to 20 kHz (-3 dB) Gain @ max

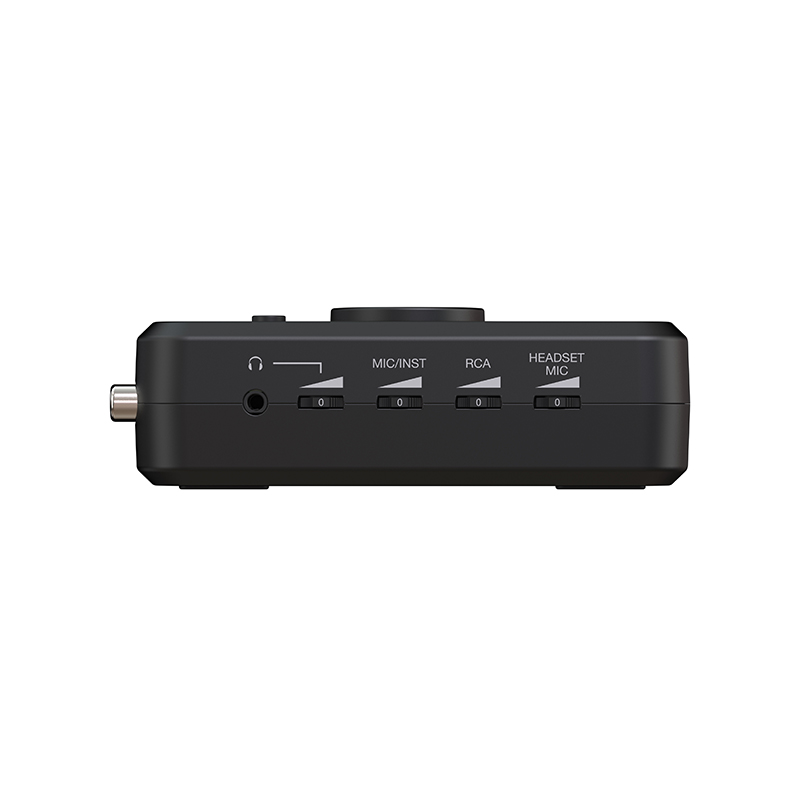

Headset/Phones

  • Connector: 1/8” TRRS jack (CTIA wiring standard)
  • Supply voltage: > 2,5 V
  • Microphone gain: Adjustable with numbered thumbwheel
  • Frequency Response: 20 Hz – 20 kHz
  • Headphone Level control: numbered thumbwheel

Battery Life

  • Phantom power On with iOS device: up to 20 hours (Alkaline batteries), with mic input connected to 3.1 mA phantom powered load

Note: all measurements made with Stream Level knob at 0dB.

Package includes

  • iRig Stream Pro interface
  • Lightning to mini-DIN connection cable with charging features (60cm/23.62″)
  • USB C-Type to mini-DIN connection cable (60cm/23.62″)
  • USB A-Type to mini-DIN connection cable (60cm/23.62″)
  • 2x 1.5V AA battery
  • Velcro strip

Compatibility

iOS Devices

Compatible with iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone SE (2nd generation), iPhone SE, iPhone 11 Pro Max, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone 6, iPad (8th generation), iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air (3rd generation), iPad Air 2, iPad mini (5th generation), iPad (7th generation), iPad (6th generation), iPad (5th generation), iPod touch (7th generation), iPod touch (6th generation).

Also compatible with all newer iPhone, iPad and iPod touch models.

Additional information

Weight 0.14 kg
Brand
