Description

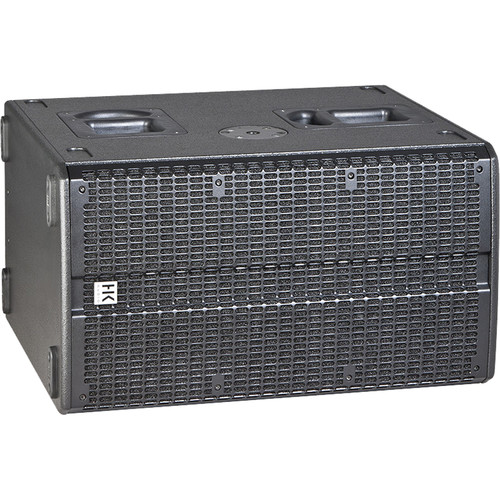

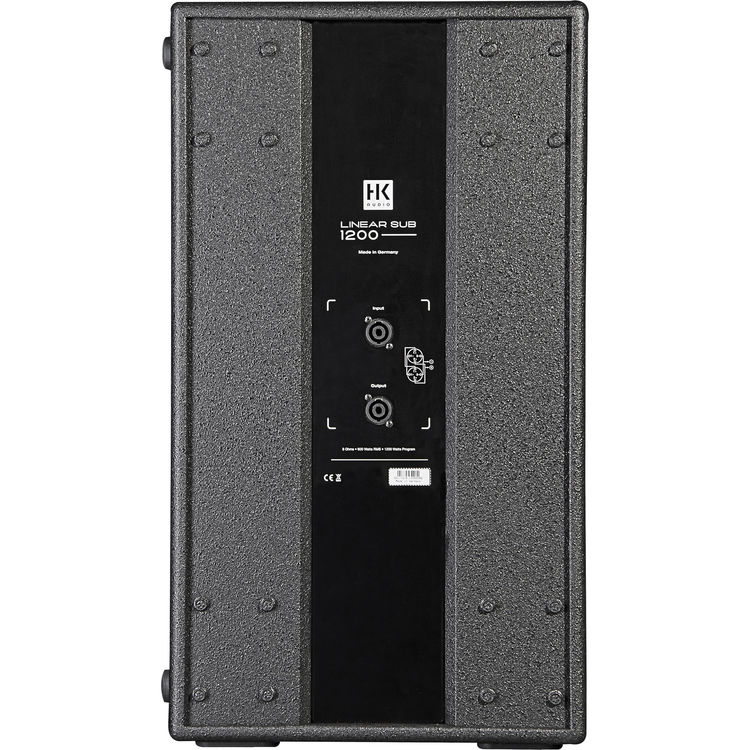

LINEAR 5 Sub 1200 A 2×10 Sub self powered 1200w HK AUDIO
The black Linear Sub 1200 A Dual 10″ 1200W Class-D Subwoofer from HK Audio is a compact and lightweight woofer that comes in a bass reflex enclosure. It is suitable for use in band PAs. The 1200W Class-D power amplifier can also drive a connected passive L Sub 1200. Loaded with two 10″ woofers, it delivers tight, snappy bass with a punch ranging all the way down to around 45 Hz.
Compact system subwoofer for band & DJ systems
1200W class-D amplification
2 x 10″ speaker with 2.5″ voice coil
128 dB max SPL peak @ 10% THD (halfspace)
Speakon out for passive extension Sub (L Sub 1200)
Rugged birch multiplex wood enclosure
Swichtable crossover frequency
Multi-functional handles
Specification:
| SPL |
Max SPL calculated: 129 dB half space
Max SPL peak: 128 dB half space Max SPL: 126 dB half space |
| Subwoofer Cut-off Frequency |
110/130 Hz variable with 24 dB/octave
|
| Power Rating |
1200 W
|
| Frequency Response |
+/- 3 dB: 55 Hz
-10 dB: 38 Hz crossover |
| Amplifier |
1200 W at 4 Ω
|
| Protection Circuits |
Under voltage-Protection, Thermo-Protection, Short-Circuit Protection, Over-current-Protection
|
| Input Sensitivity |
+4 dBu @ Gain Center click
|
| Protection |
Subsonic 24 dB/Octave, Peak Limiter
|
| Connections |
2 x XLR- Combi IN, 2 x XLR-Thru, 2 x XLR-Mid/High Out, Speakon NL4 to L Sub 1200
|
| Speaker |
LF Speaker: 2 x 10″ (4 Ω) mit 2.5″ voice coil featuring Advanced-Cooling-Technology
|
| Amplifier |
Class D
|
| Pole Mount |
2 x M20
|
| Handles |
4 integrated
|
| Enclosure |
Birch multiplex 15/18 mm, 9/13 ply
|
| Grille |
2 mm metal grille
|
| Finish |
Acrylic enamel, black
|
| Dimensions |
14.9 x 26.3 x 22.0″ (38 x 67 x 56 cm)
|
| Weight |
67.7 lb (30.7 kg)
|
Additional information
| Weight | 29 kg |
|---|---|
| Brand | HK AUDIO |
