MXR® 74 VINTAGE PHASE 90 PEDAL
€180.00
In stock
Description

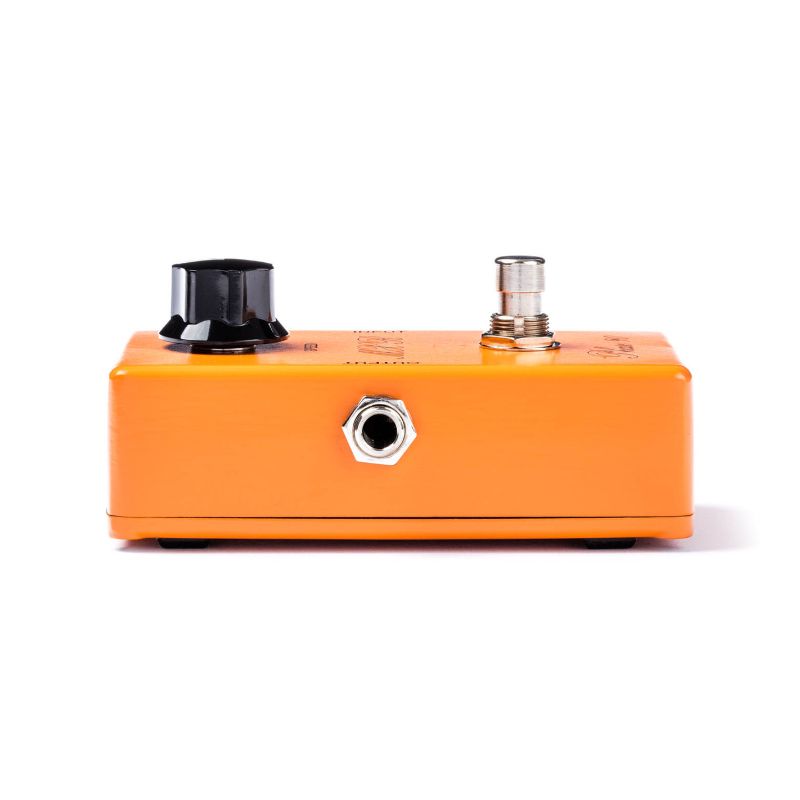

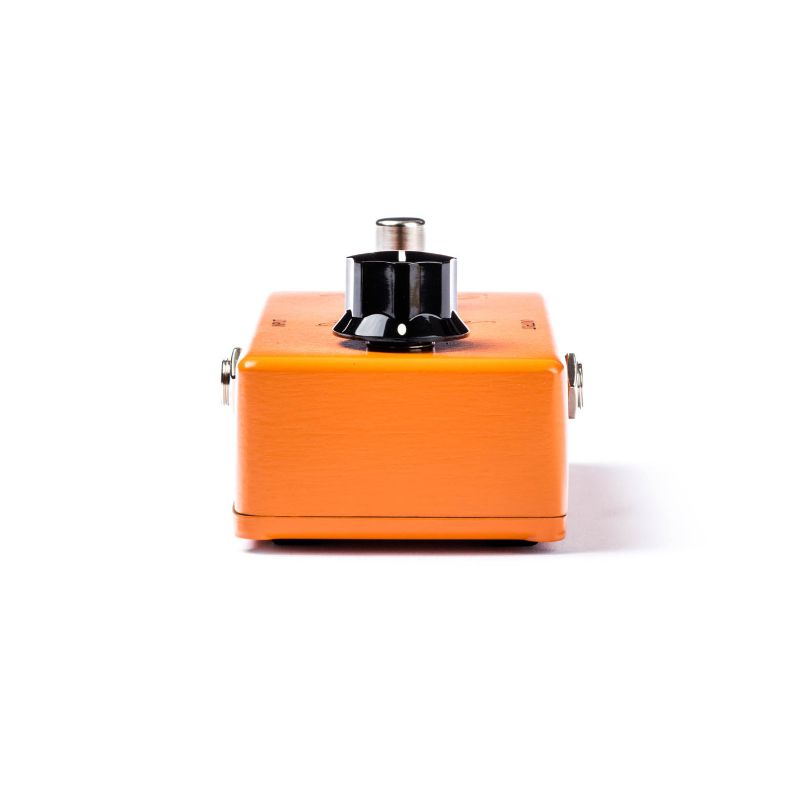

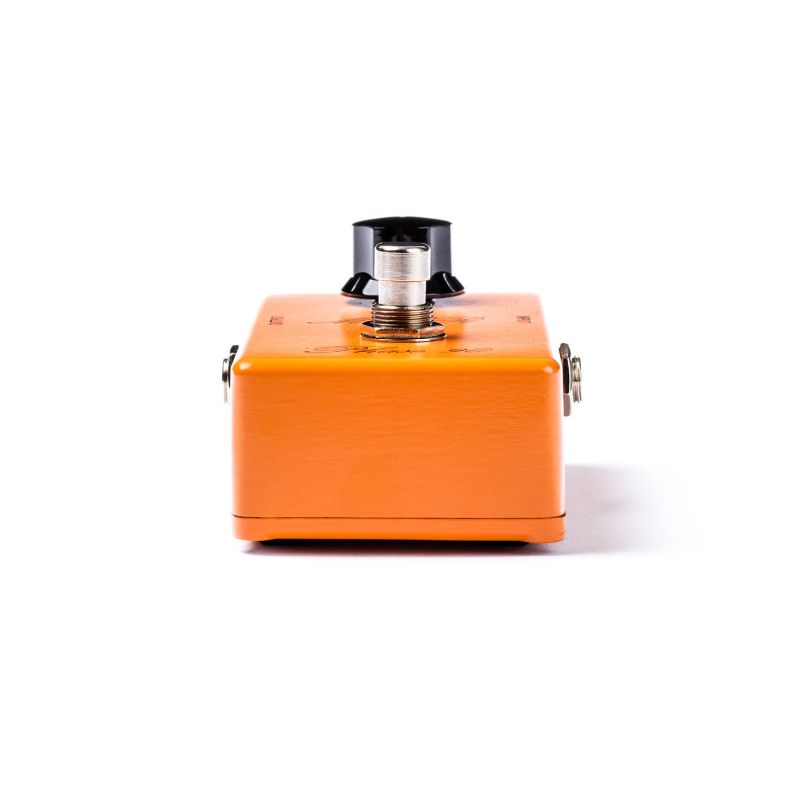

MXR® 74 VINTAGE PHASE 90 PEDAL
The ’74 Vintage Phase 90 is a faithful reissue of the original,
featuring hand-matched FETs and a hand-wired circuit board.
This pedal can only be powered by one 9-volt battery (not included).
• Hand-wired circuit board built with
original-spec 1975 components
• Original high-quality Switchcraft
Input/Output jacks and Carling
bypass switch
• Hand-selected FETs, matched to
produce deep and rich phasing
• All-analog circuitry
POWER:
The MXR Vintage Phase 90 is powered by
one 9-volt battery, accessed by removing
the bottom plate of the pedal.
SPECIFICATIONS:
• Input Impedance 470 kΩ
• Output Impedance 10 kΩ
• Max Input Level -5 dBV
• Signal to Noise Ratio* > 95 dB
• Current Draw 2.2 mA
• Power Supply 9-volt battery
VIDEO:
Additional information
| Weight | 0.22 kg |
|---|---|
| Brand | MXR |
