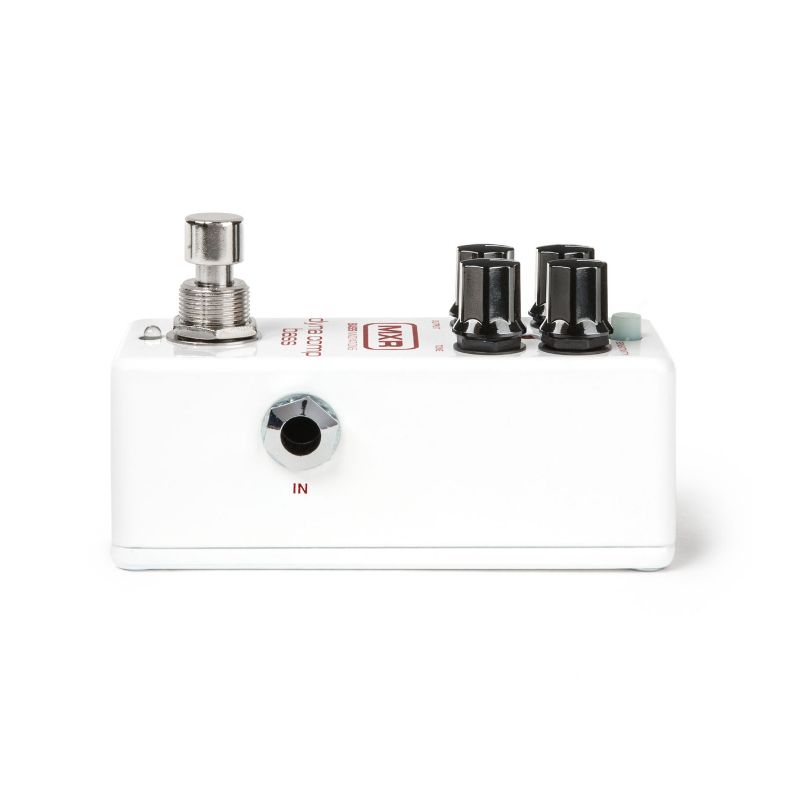

MXR® DYNA COMP® BASS COMPRESSOR PEDAL

Description

MXR® DYNA COMP® BASS COMPRESSOR PEDAL

This pedal delivers the iconic Dyna Comp Compressor sound in bass-friendly

form thanks to a Clean control for maintaining low end integrity and a Tone control

to adjust your upper midrange to retain playing dynamics.

This pedal can be powered by a Dunlop ECB003 9-volt adapter,

or the DC Brick™, Iso-Brick™,

and Mini Iso-Brick™ power supplies (not included).

Power:

The Dyna Comp® Bass Compressor is powered by the
Dunlop ECB003 9-volt adapter or an MXR® Brick™ Series
power supply (each sold separately). This pedal cannot
be powered by a battery

Specifications:

• Input Impedance 600 kΩ
• Output Impedance 25 kΩ
• Max Input Level -5 dBV
• Max Output Level +2 dBV
• Max Compression 36 dB
• THD* 0.2%
• Noise Floor** -100 dBV
• Current Draw 11 ma
• Tone +/- 7dB, 1kHZ
• Power Supply 9 VDC
