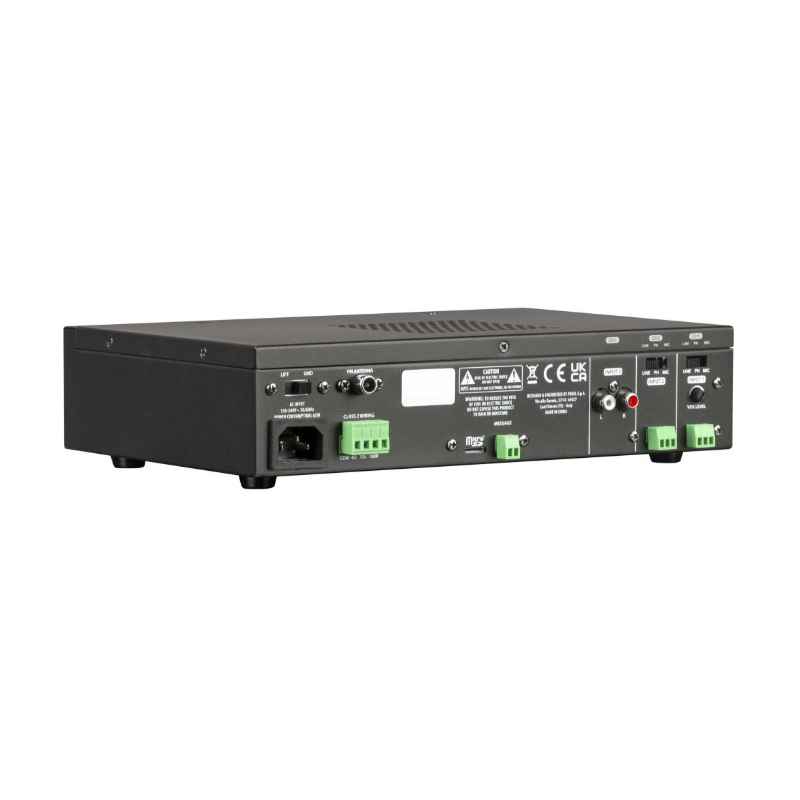

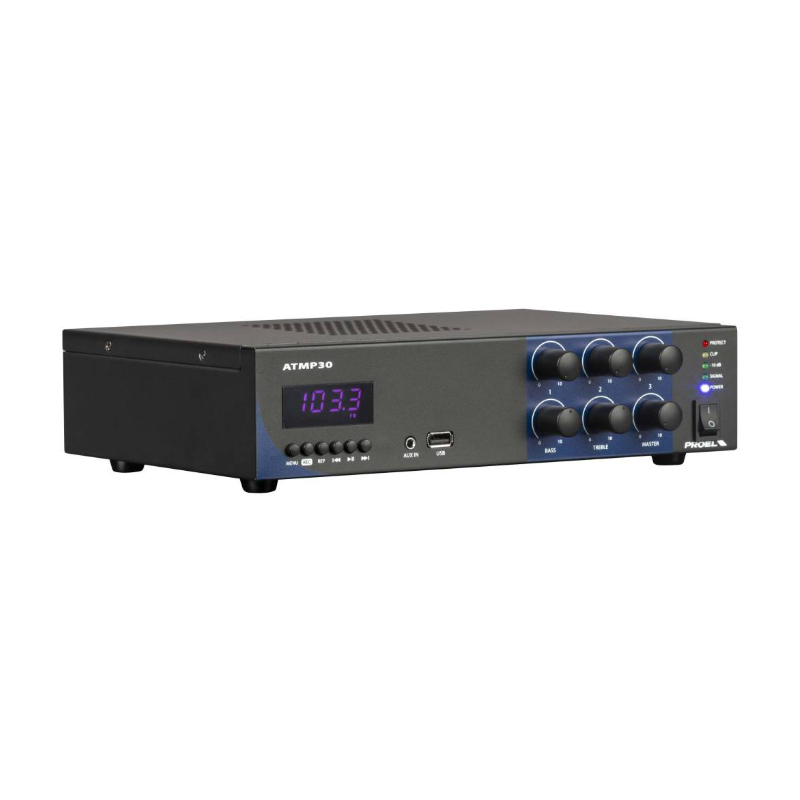

PROEL ATMP30 30W professional mixer amplifiers 100VMedia player-USB MP3, Bluetooth and FM radio
€329.00
In stock
Description
PROEL ATMP30 30W professional mixer amplifiers 100VMedia player-USB MP3, Bluetooth and FM radio
ATMP30 and ATMP60 are 30W or 60W professional mixer amplifiers with constant voltage (70/100V) or constant impedance (4/8Ω) output. This new series of power amplifiers with media player has been conceived to fulfil the needs of a wide range of Commercial Audio installations in the most flexible and professional way. The new range responds to precise operating criteria and it has been designed and tested to guarantee maximum reliability in prolonged use.
MAIN FUNCTION
·     Media player with USB MP3, Bluetooth and FM radio.
·     Current limiting, over current and thermal protection circuits.
·     Led start-up and level indicator.
·     Main level control (Master).
·     Separated Level Controls for 1÷2 and CH3 Aux/Media player inputs.
·     Bass and Treble tone adjustment.
·     2 MIC / MIC Phantom 24V / LINE inputs balanced on Euroblock terminals.
·     1 AUX Line RCA/Minijack Input.
·     MIC 1 Input with priority function.
3 outputs, one at constant impedance (4 Ω) and two at constant voltage (70 / 100 V).
| Model:Â | ATMP30 |
| Output power RMS | 30 W |
| Inputs | 2x MIC/PH/LINE (3.5mm EUROBLOCK) 1x AUX (RCA L & R / MINI JACK) |
| Input Sensitivity | MIC: -50 dBv / 1 kΩ balanced PH: as above with 24V phantom supply LINE: -6 dBv / 100 kΩ balanced AUX: -6 dBv / 47 kΩ unbalanced |
| Controls | MASTER VOLUME 2 MIC/LINE VOLUME MEDIA PLAYER/AUX VOLUME PRIORITY on MIC/LINE 1 MENU/REC/REP/I<</>II/>>I |
| Mute Priority | SD card > CH1 > CH2, CH3 |
| Tone Controls | TREBLE – Shelving +/- 10 dB @ 10 kHz BASS – Shelving +/- 10 dB @ 100 Hz |
| Loudspeakers outputs | 100 V / 70 V / 4 Ω |
| Min load at 70 V | 163 Ω |
| Min load at 100 V | 333 Ω |
| Output Connector | 5.08 mm EUROBLOCK |
| Frequency response | 80 Hz – 17 KHz (-3dB) |
| Distortion (THD) | < 1% (@ Pnom 1 KHz) |
| S/N Ratio | ≥ 80 dB |
| Operating temperature | 0 ÷ +40 °C |
| Power Supply | 100 – 240 V~ 50/60Hz |
| Power Consumption | 65 W |
| Dimensions (WxHxD) | 280 x 70 x 185 mm (11.0 x 2.75 x 7.28 in) |
| Weight | 2.1 Kg (4.63 lbs) |
Additional information
| Weight | 2.1 kg |
|---|---|
| Brand | PROEL |
