Description

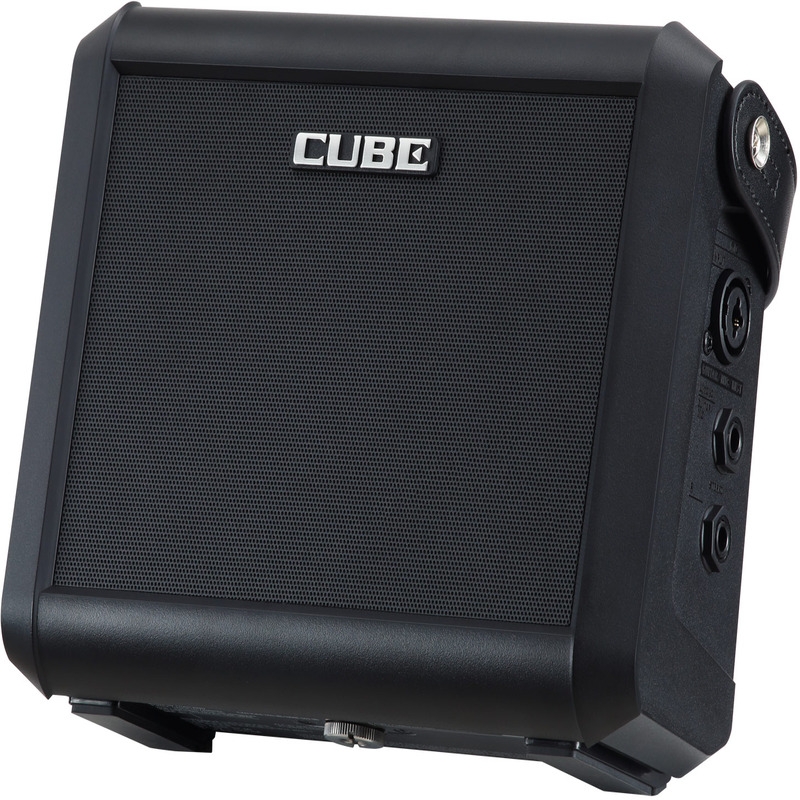

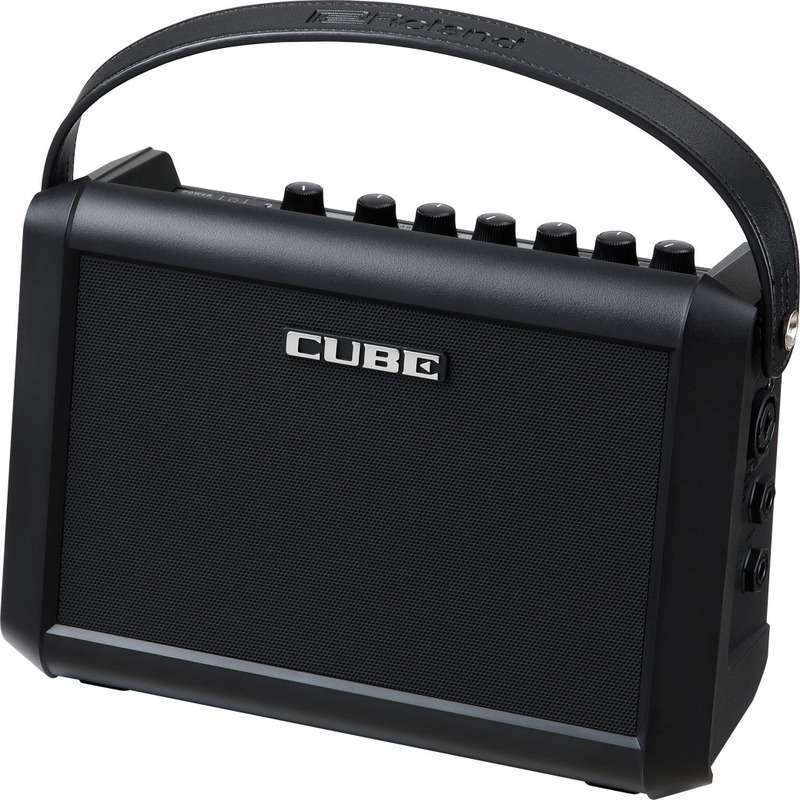

ROLAND CUBE STREET MINI – All In One AMP 10W
CUBE Street Mini builds on the trusted CUBE Street legacy, delivering exceptional sound quality and features in an ultra-compact PA for cafés, small-scale events, and personal studios.
Specifications
|
| Rated Power Output |
10 W (5 W + 5 W) |
| Nominal Input Level |
MICÂ INPUT: -40 dBu (2 k ohm)
GUITAR/MIC/INST INPUT: -10 dBu (1 M ohm) |
| Speakers |
Woofer: 12 cm (5 inches)
Tweeter: 1.2 cm (0.5 inches) x 2 |
|
Controls
|
| POWER switch |
POWER switch |
| TUNER/Bluetooth |
TUNER/Bluetooth button |
| GUITAR/MIC/INST |
TYPE switch (FLAT, BRIGHT, INST, CLEAN, LEAD, MIC)
VOLUME knob
TONE knob
REV/DLY knob |
| MIC |
VOLUME knob
TONE knob
REV/ECHO knob |
|
Indicators
|
| Indicators |
POWER
TUNER/Bluetooth |
|
Connectors
|
| INPUT |
MIC jack: Combo type (XLR type, 1/4-inch TRS phone type), balanced
GUITAR/MIC/INST L (MONO) jack: 1/4-inch phone type
GUITAR/MIC/INST R jack: 1/4-inch phone type
5 V (DC IN) port: USB Type-C (R) |
| OUTPUT |
PHONES/REC OUT jack: Stereo miniature phone type |
|
Other
|
| Bluetooth |
Bluetooth Ver 5.2 Profile Support: A2DP (Audio) |
- Power Supply
|
Rechargeable nickel-metal hydride battery |
| Current Draw |
1,500 mA |
| Expected battery life under continuous use |
Approximately 7 hours
* These figures will vary depending on the actual conditions of use. |
| Battery charging time |
Approximately 3 hours
*To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 2 A or higher). |
| Accessories |
Leaflet “Read Me First”
USB Type-C (R) to USB Type-A cable for charging |

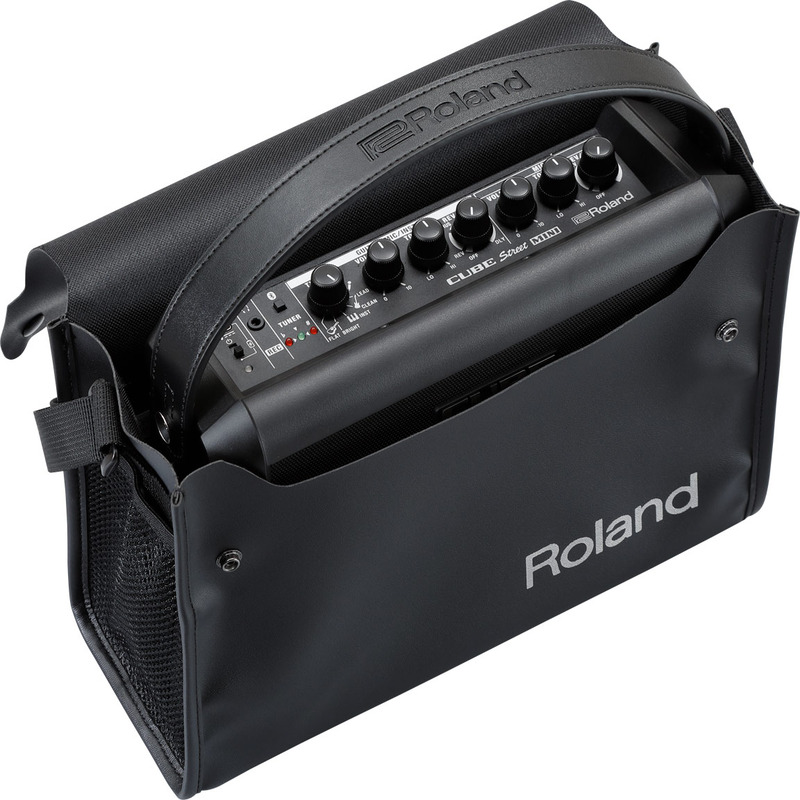

| Carrying case |
CB-MBC1 |
|
Size and Weight
|
| Dimensions (excluding strap) |
274 (W) x 110 (D) x192 (H) mm
10-25/32 (W) x 4-11/32 (D) x 7-9/16 (H) inches |
| Dimensions (using stand) |
274 (W) x 156 (D) x197 (H) mm
10-25/32 (W) x 6-9/64 (D) x 7-3/4 (H) inches |
| Weight (including strap) |
2.2 kg
4.85 lbs |
|
