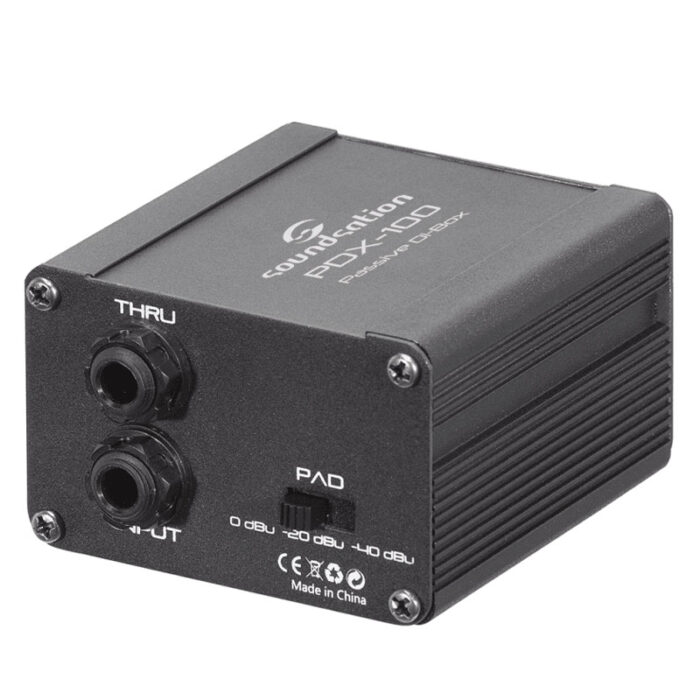

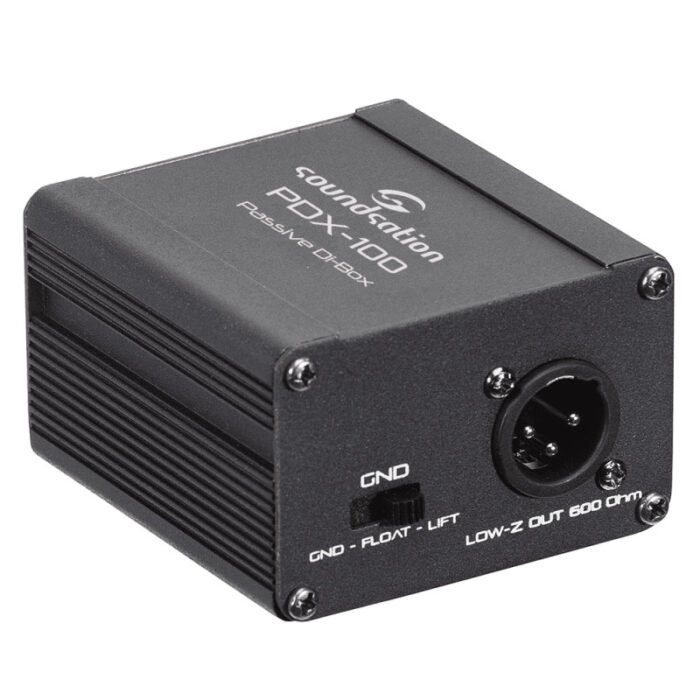

SOUNDSATION [PDX-100] Passive DI-BOX
![SOUNDSATION [PDX-100] Passive DI-BOX](https://www.musicgallery.com.cy/wp-content/uploads/2022/04/soundsation_logo.png "SOUNDSATION [PDX-100] Passive DI-BOX"){kind=logo}
€31.90
Out of stock
Description
SOUNDSATION [PDX-100] Passive DI-BOX
The DI-Box Soundsation PDX-100 converts high impedance audio signal from instruments or line outputs to a low impedance balanced output to be fed directly into a mixing console or amplifier input. Low impedance (Lo-Z) is capable of longer cable runs via XLR connection with lower signal degradation than high impedance.
| Specifications | |
| Input | Unbalanced 6,3mm Jack |
| Outputs | XLR Male balanced, 6,3mm THRU Jack unbalanced |
| Input Impedance | >100 KOhm |
| Output Impedance | 600 Ohm |
| Controls | PAD Selector (0/-20/-40dBu), GND Selector (GND, Float/Lift) |
| Dimensions (WxDxH) | 86 x 70 x 45 mm |
| Weight | 0,234Kg |
| Packing Dimension (WxDxH) | 90 x 75 x 60 mm |
Additional information
| Weight | 0.23 kg |
|---|---|
| Brand | SOUNDSATION |
