SOUNDSATION WF-U99 UHF 99-Channel Stereo In-Ear Monitor System
€359.00
In stock
Description
SOUNDSATION WF-U99 UHF 99-Channel Stereo In-Ear Monitor System

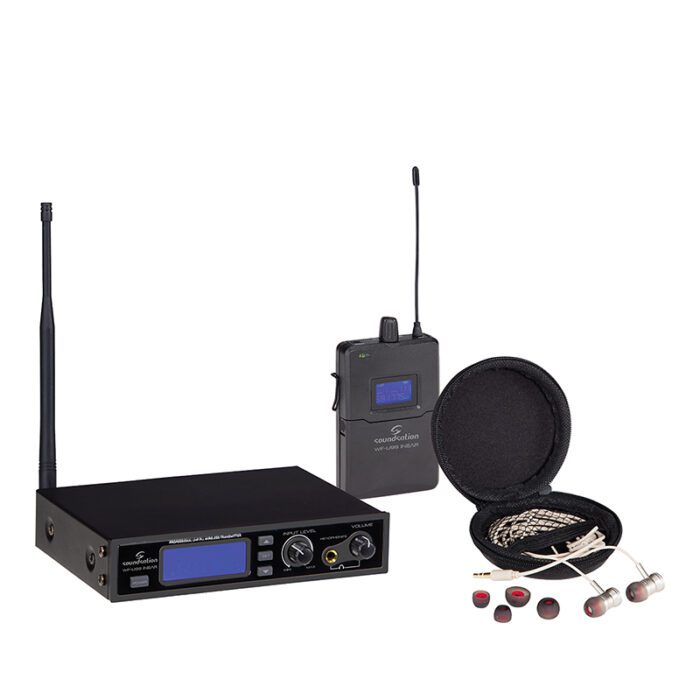

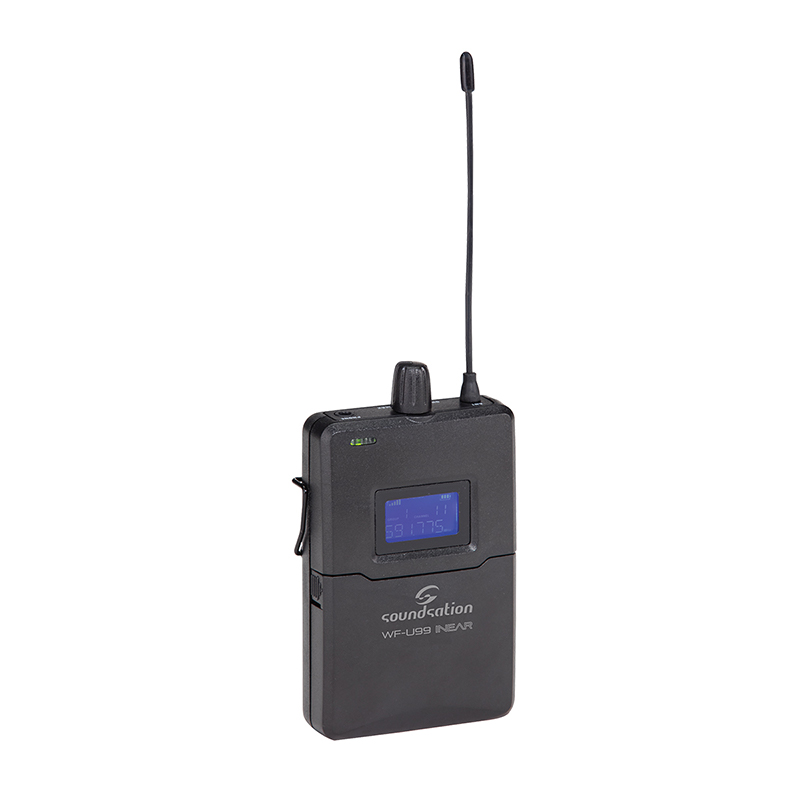

WF-U99 INEAR monitoring system is for all those professionals who need maximum mobility on stage without losing a reliable stereo monitoring system and high-quality audio. Rugged, reliable, easy to transport and install, the WF-U99 INEAR features independent Stereo/Mono modulation functions, PLL technology, and 99 channels. The pocket receiver is equipped with illuminated LCD and is absolutely easy to set up. It is supplied with earphones that provide an optimal reproduction of the entire audio spectrum. In the package, you can also found various ear-fitting pads for an individual fit.The half-rack receiver unit is provided with a 19” standard rack mount kit. All connections are balanced and assure maximum audio standards.
Specifications
| Carrier Frequency | UHF 823-832 + 863-865 MHz |
| Modulation | FM Stereo |
| Output Power | 10mW |
| Effective Working Distance | 80 meters (without obstacles) |
| Oscillation Mode | PLL phase-locked frequency synthesizer |
| Maximum Deviation | ±68KHz |
| Comprehensive S/N ratio | >105dB |
| Comprehensive T.H.D | <0.4% @1 KHz |
| Audio Input | 2x Line-Inputs with Combo Connectors (XLR and jack 6.3mm) |
| Transmitter Audio Output | 6.3mm Stereo Jack (Headphones) |
| Transmitter Size (WxHxD) | 210 x 43 x 182 mm |
| Transmitter Weight | 1.06 kg |
| Frequency Response | 40Hz-16KHz±3dB |
| Stereo Separation | =45dB @1 KHz |
| Receiver Output socket | 3.5mm stereo headphone jack |
| Receiver Output Power | 2x150mW (THD3%) |
| Battery | 2x AA-Type Batteries |
| Receiver Current consumption | 185mA (typical) |
| Battery Current/life | About 7 hours |
| Receiver Size (WxHxD) | 66 x 111 x 26 mm (antenna excluded) |
| Receiver Antenna Size (W/DxH) | Ø4 x 105 mm |
| Receiver Weight | 143 g (batteries included) |
| Packing Size (WxHxD) | 315 x 102 x 44 mm |
Additional information
| Weight | 1.4 kg |
|---|---|
| Brand |
