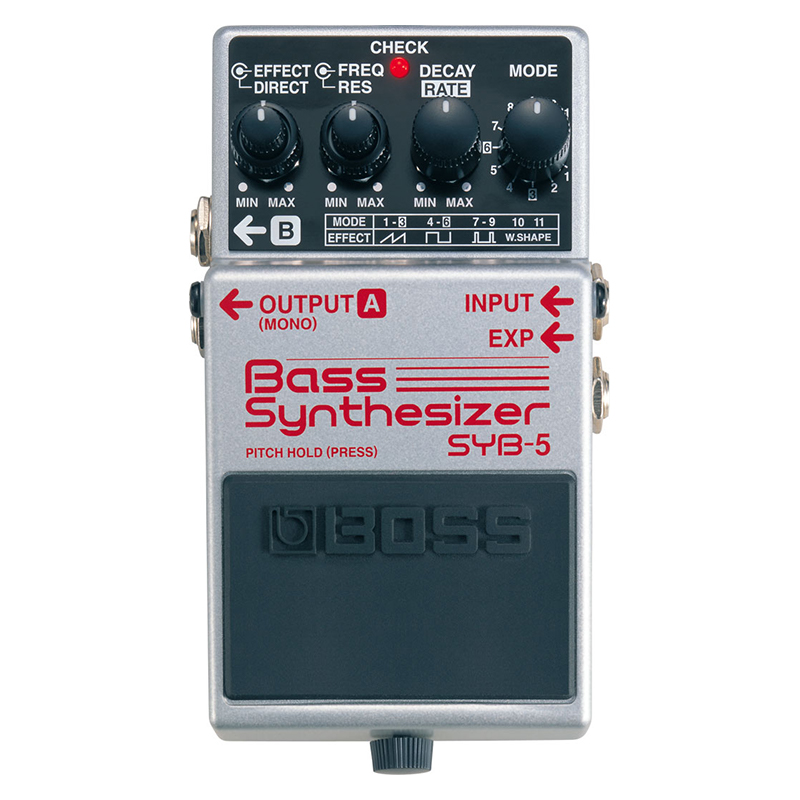

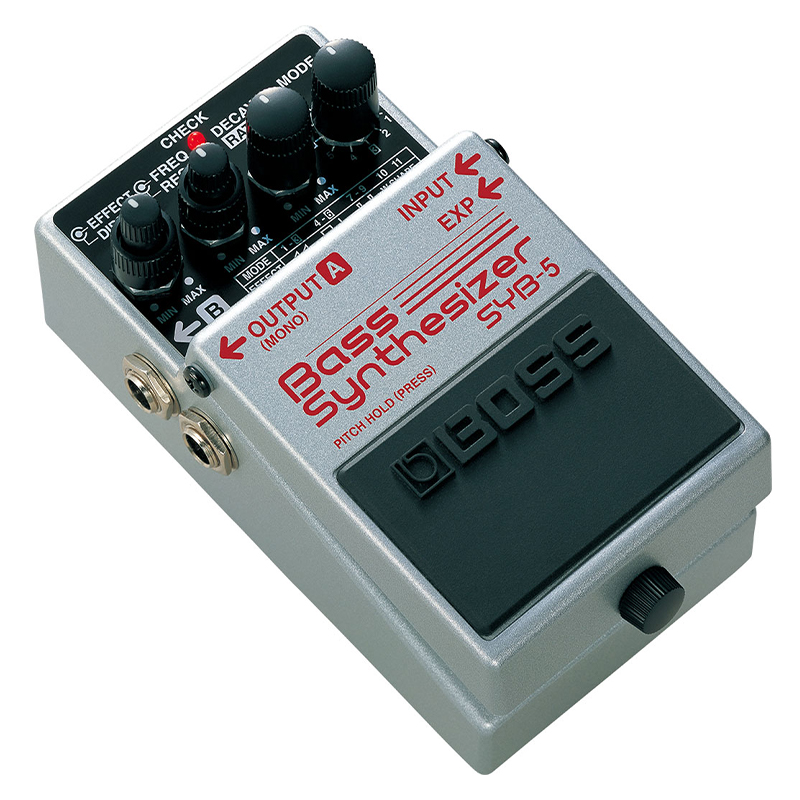

SYB-5 Bass Synthesizer Pedal

Description

SYB-5 Bass Synthesizer Pedal

The BOSS SYB-3 was the world’s first bass synthesizer to be packed into a compact pedal, and it found favor with experimentalists and tone aficionados alike. Today, the next-generation bass-synth pedal has arrived: the SYB-5. Utilizing the latest in DSP technology, the SYB-5 faithfully reproduces the classic sound characteristics of analog synthesizers with enhanced punch and power.

Specifications

Nominal Input Level
-20 dBu

Input Impedance
1 M ohm

Nominal Output Level
-20 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Bypass
Buffered bypass

Controls
MODE knob
DECAY/RATE knob
FREQ/RES(Frequency/Resonance) knob
EFFECT/DIRECT(Effect Level/Direct Level) knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT A(MONO)/OUTPUT B jack: 1/4-inch phone type
EXP jack: 1/4-inch stereo phone type
DC IN jack

Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)

Current Draw
50 mA

Expected battery life under continuous use
Alkaline: Approx. 6 hours
Carbon: Approx. 2 hours
*These figures will vary depending on the actual conditions of use.

Accessories
Owner’s manual
Mode Label
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)

Options (sold separately)
AC adaptor: PSA series
Expression pedal: Roland EV-5/BOSS EV-30, FV-500L, FV-500H

Size And Weight

Width
73 mm

Depth
129 mm

Height
59 mm

Weight (including battery)
440 g
