Sold out

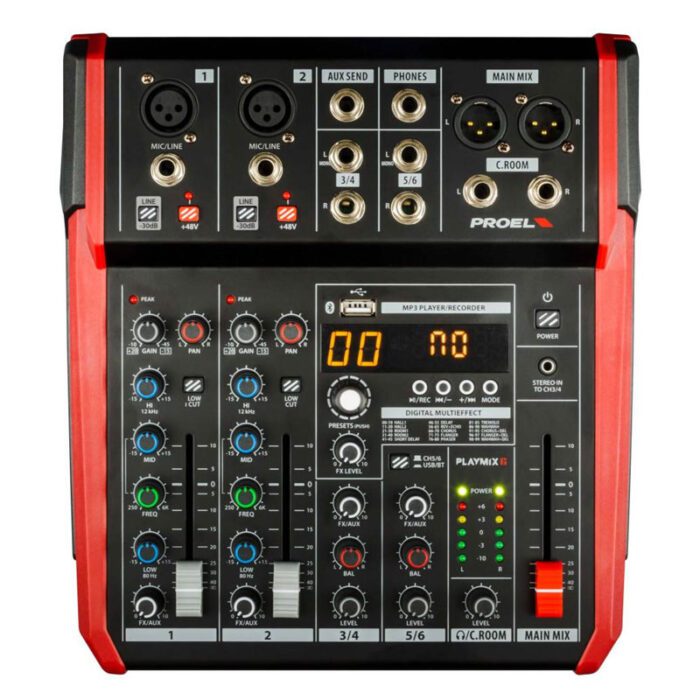

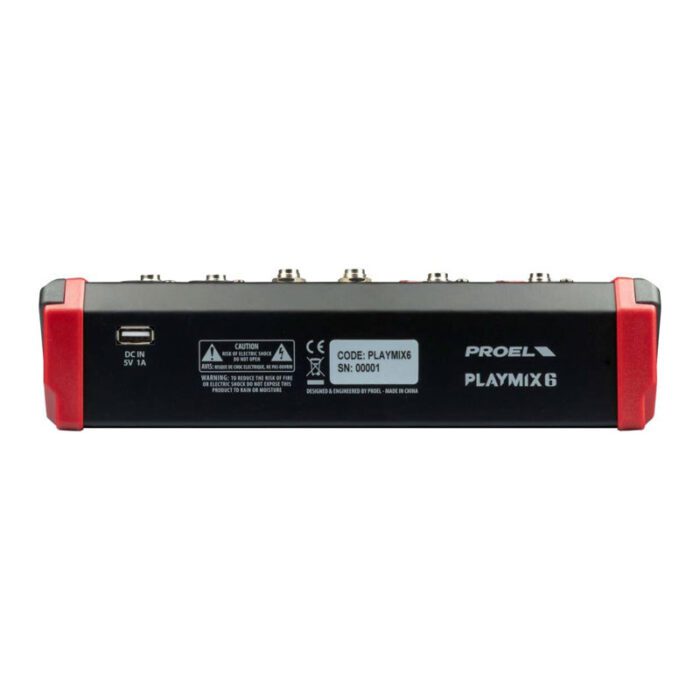

PROEL PLAYMIX6 Bluetooth/USB/EFFECTS Mixer
€165.00
Out of stock
Description
PROEL PLAYMIX6 Bluetooth/USB/EFFECTS Mixer
PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.
| Mic Input | sensitivity | from -10 to -45 dB | Balanced XLR-F |
| impedance | 1 Kohm | ||
| Line Input | sensitivity | from +20 to -15 dB | Balanced JACK |
| impedance | 20 Kohm | ||
| Lo cut | 80Hz, 6dB/oct. | ||
| EQ | HIGH (shelving) | ±15 dB @ 12K Hz | |
| MID (peaking) | ±12 dB @ 250-6K Hz | ||
| LOW (shelving) | ±15 dB @ 80 Hz | ||
| STEREO INPUT CHANNEL | |||
| Line Input | sensitivity | from +12 to -15 dB | Balanced JACK |
| impedance | 20 Kohm | Stereo Mini JACK | |
| MASTER SECTION | |||
| MAIN MIX | nom. out level | Â +4 dBu | Unbalanced XLR-M |
| C. ROOM output | nom. out level | +4 dBu | Unbalanced JACK |
| SEND output | nom. out level | +4 dBu | Unbalanced JACK |
| HEADPHONES | min. impedance | 64 ohm | Stereo JACK |
| Bluetooth | Version 5.0, Audio Streaming | ||
| USB Audio Interface | Stereo IN/OUT, 16-bit converter, 44.1 KHz sample rate | Type A | |
| DIGITAL EFFECT PROCESSOR | |||
| Effects | 100 presets | ||
| A/D and D/A converters | 24 bit | ||
| DSP resolution | 24 bit | ||
| Controls | 2-DIGIT display, DIAL, LEVEL | ||
| GENERAL SPECIFICATIONS | |||
| Maximum level | all outputs | +15 dBu | |
| Crosstalk | meas. at 1 KHz | > 75 dB | |
| HUM & Noise | unweighted | < 90 dB | |
| THD + Noise | at +4dB, 1kHz | < 0,009 % | |
| Dimensions (WxHxD) | 247 x 274 x 61 mm | ||
| Weight | 1,80 kg | ||
| POWER REQUIREMENTS | |||
| Supply | use only supplied AC/DC ADAPTER 5VDC 1A | ||
| Mains Supply Voltage | 100-240 VAC (±10%)  50/60 Hz | ||
| Consumption | 15 W |
Additional information
| Weight | 2.1 kg |
|---|---|
| Brand | PROEL |
