Sold out
€198.00
Out of stock
Description

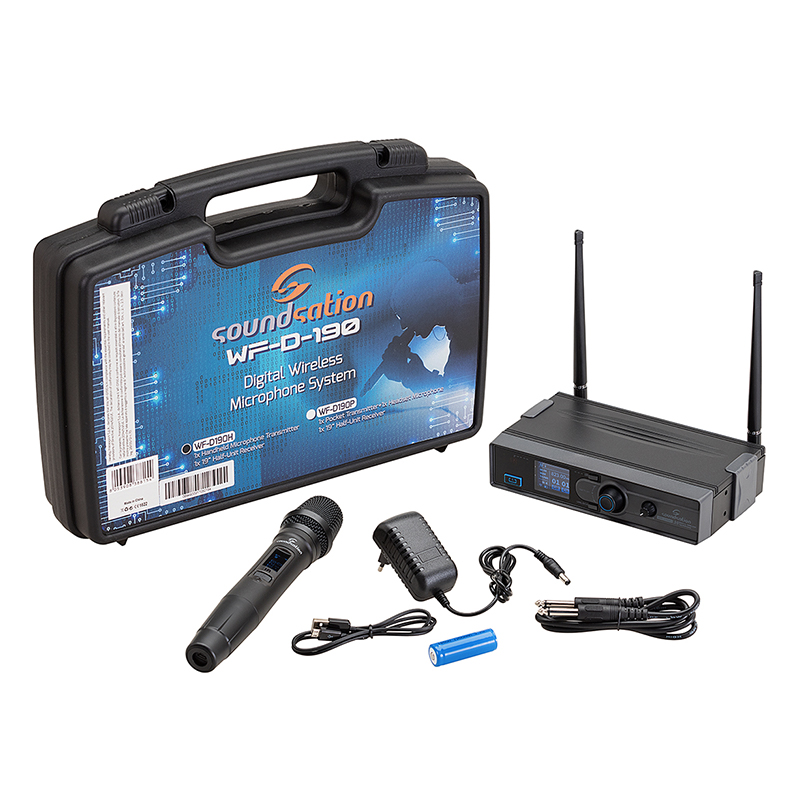

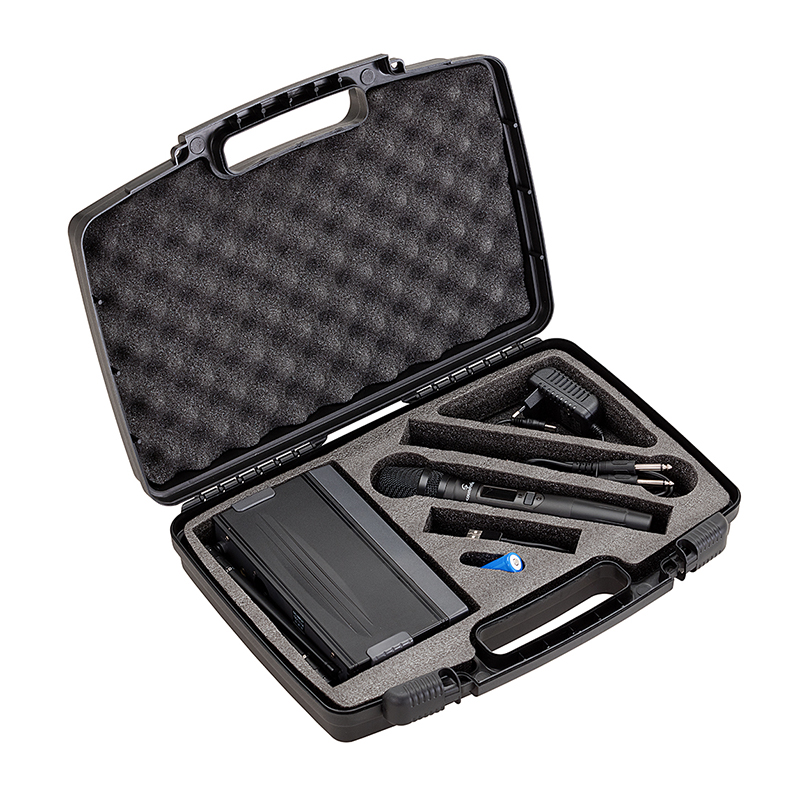

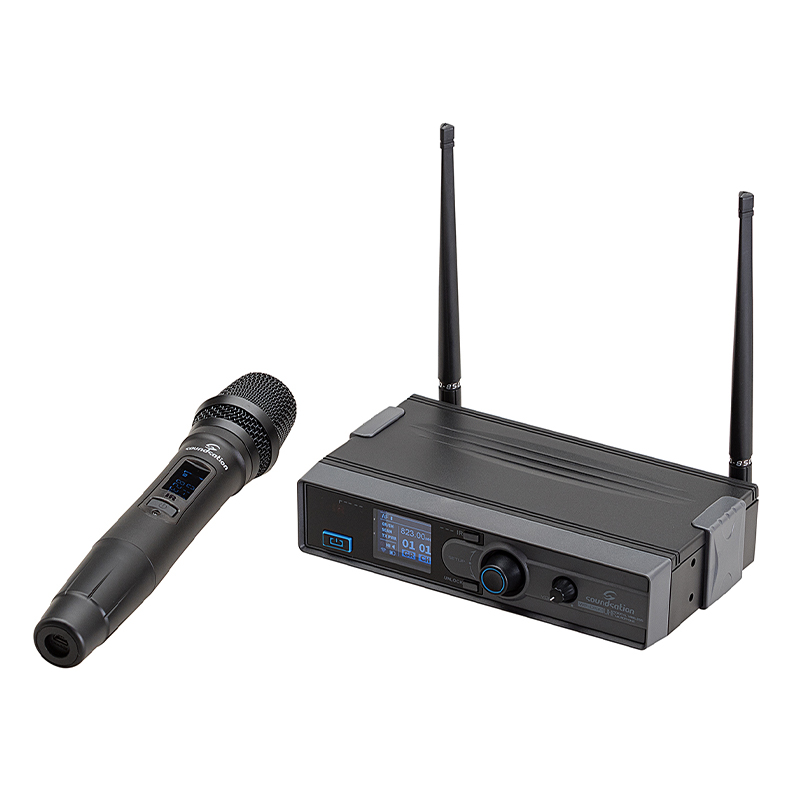

SOUNDSATION WF-D190H Digital Wireless Hand-held Microphone System
WF-D190 adopts a brand-new digital transmission technology and hardware encryption of audio data that enable superior audio quality compared to analog UHF systems, very-low latency (better than 2.4GHz systems) and maximum security due to the cryptographic hardware. The unique 16bit digital ID pilot technology avoids interferences even on same frequency, and allows continuous exchange of data between transmitter and receiver, such as battery level, transmission power, squelch operation, etc. The system is also equipped with automatic frequency scanning and frequency spectrum display, which allow the user to select the less disturbed frequencies in every environment it operates. It features 90 frequencies, divided into 15 groups, each of which contains 6 channels. The user interface is very simple and intuitive, thanks to the TFT colour display on the receiver and the simplicity of its setup menus. The handheld transmitter and the bodypack, however, are equipped with LCD display with auto-off function, to save battery consumption. The handheld microphone is also equipped with rechargeable lithium battery that can be recharged via the USB port on the back of the receiver. Finally, two 19″ rack mount kit are available to install 1 or 2 receivers, respectively, in 1 or 2 rack units.
Specifications
System Carrier Frequency | UHF823-832MHz |
System Bandwidth | 9MHz |
System Channel Bandwidth | 100kHz |
Preset Group/Channel | 10 groups, 9 frequencies in each group |
Dynamic Range | >98dB |
Total Harmonic Distortion | <0.1% |
Frequency Response | 30Hz-20kHz / ±2dB |
Audio Output Level | Balanced 400mV; Unbalanced 400mV |
System Packing Dimensions (WxHxD) | 436 x 104 x 324 mm |
System Packing Gross Weight | 2.5 kg |
Power Supply | DC 12V / 1000mA |
Receiver Consume Power | 5W |
Receiver Signal/Noise Ratio | >98dB |
Receiving Sensitivity | -95dBm |
Transmission Delay | <3ms |
Receiver Dimensions (WxHxD) | 210 x 45 x 118 mm (antennas not incl.) |
Receiver Antennas | 255 mm (not bent) |
Receiver Net Weight | 0.4 kg |
Transmitter Power | 10mW (Max) |
Modulation Type | DQPSK |
Battery Voltage Handheld Transmitter | 1x 3.7V – 1200mAh Lithium Rechargeable Battery (type 18500) |
Transmitter Continuous Using | 5 hours (HI Trans. power); 7 hours (LO Trans. power) |
Battery Charge Time | About 3,5 hours |
Hand-held Mic. Dimensions (W/DxH) | Ø35 (min) – Ø46 (max) x 240 mm |
Hand-held Mic. Net Weight | 0.26 kg (batteries included) |
Additional information
Weight | 2.5 kg |
---|---|
Brand |
