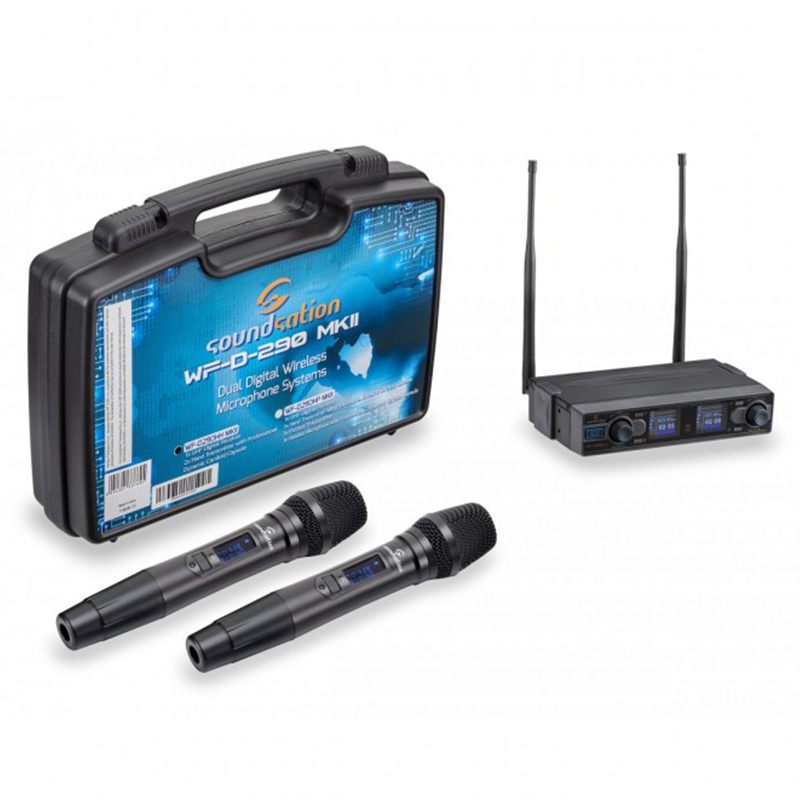

SOUNDSATION [WF-D290HH MKII] UHF Dual Digital Wireless Microphone System

269.00

Out of stock

SKU: J773J Category: Brand:

Description

SOUNDSATION [WF-D290HH MKII] UHF Dual Digital Wireless Microphone System

SOUNDSATION WF-D290 MKII adopts a brand-new digital transmission technology and hardware encryption of audio data that enable superior audio quality (compared to analog UHF systems), very-low latency (better than 2.4GHz systems) and maximum security due to the cryptographic hardware. The unique 16bit digital ID pilot technology avoids interferences even on same frequency, and allows continuous exchange of data between transmitters and receiver, such as battery level, transmission power, squelch operation, etc. The system is equipped with automatic frequency scanning and frequency spectrum display, which allow the user to select the less disturbed frequencies in every environment it operates. It features 90 frequencies for each transmitter, divided into 10 groups, each of which contains 9 channels.

KEY FEATURES

UHF E-Band operation (823-832 MHz)
Digital audio transmission technology
Unique digital 16-bit ID pilot technology
Transmitter Audio level and Battery-Low monitoring on the Receiver
Double antenna diversity technology
No crosstalk disturbance even on same frequency
Ultra-short audio latency
Sampling Frequency
30Hz-20kHz frequency response
Colorful TFT display and menu settings on receiver
Auto frequency scanning and spectrum display
50m Ideal Distance (without obstacles)
Infrared Tx-Rx synchronization system for quick system setting
Professional Handheld Microphone with Professional Dynamic Cardioid Capsule and rechargeable Lithium Battery
Rack-Mount Kit for 1 or 2 receiver units to 1x or 2x 19″ rack unit (optional)
Detachable Antennas with BNC connectors

SPECIFICATIONS

Carrier Frequency UHF823-832 MHz
Bandwidth 9 MHz
Channel Bandwidth 100 kHz
Preset Group/Channel 10 groups, 9 frequencies in each group
Dynamic Range >98 dB
Total Harmonic Distortion <0.1%
Frequency Response 30 Hz-20 kHz/±2 dB
Audio Output Level Balanced 400mV; Unbalanced 400mV
Packing Dimensions (WxHxD) 436x104x324 mm
Packing Gross Weight 2.5 kg
Receiver Power Supply DC 12V/1000 mA
Receiver Consume Power 5 W
Signal/Noise Ratio >98 dB
Receiving Sensitivity -95 dBm
Transmission Delay <3 ms
Receiver Dimensions (WxHxD) 210x45x118 mm (antennas not incl.)
Receiver Antennas 255 mm (not bent) with BNC connectors
Net Weight 0.4 kg
Transmitter Power 10 mW (Max)
Modulation Type DQPSK
Battery Voltage Handheld Transmitter 1×3.7 V – 1200 mAh Lithium Rechargeable Battery (type 18500)
Continuous Using 5 hours (HI Trans. power); 7 hours (LO Trans. power)
Battery Charge Time About 3,5 hours
Hand-held Mic. Dimensions (W/DxH) Ø35(min)-Ø46(max)x240 mm
Hand-held Mic. Net Weight 0.26 kg (batteries included)

Additional information

Weight 1.9 kg
Brand
