Sold out
SOUNDSATION WF-U216 HH UHF DOUBLE 16-Channel Wireless System With Two Handheld Microphones
€199.00
Out of stock
Description

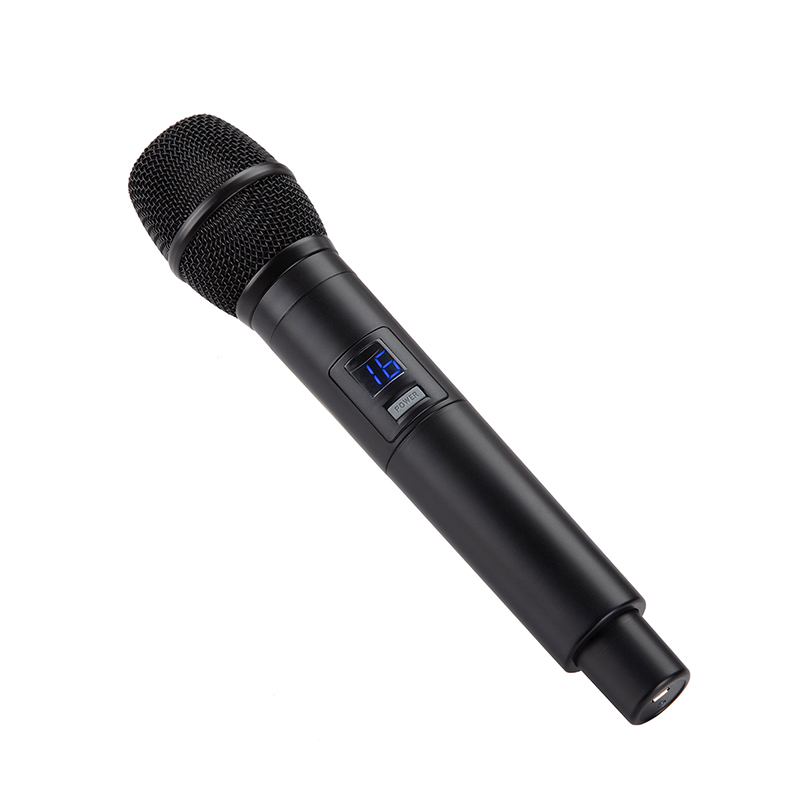

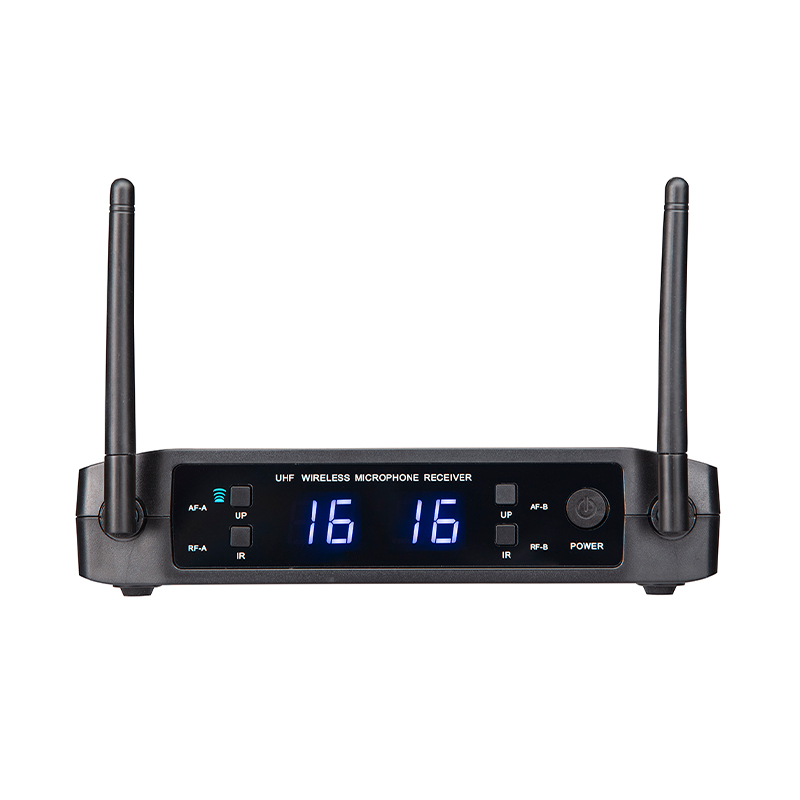

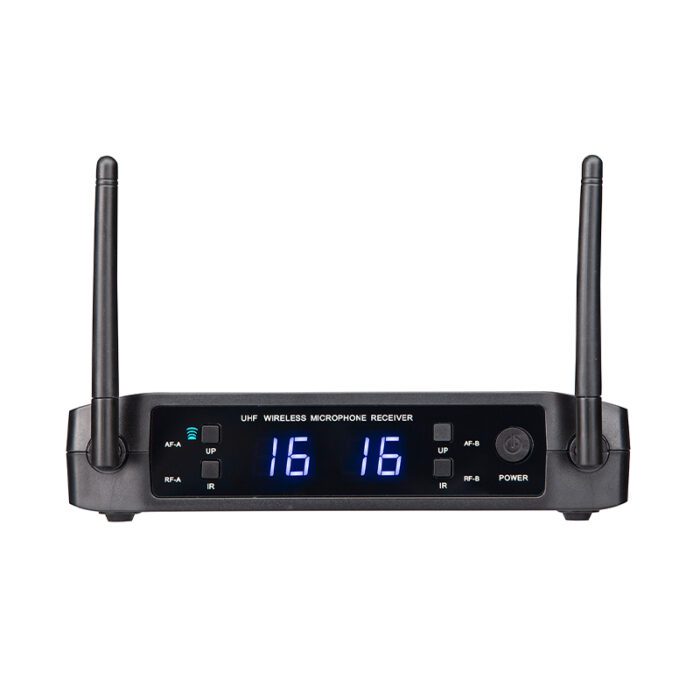

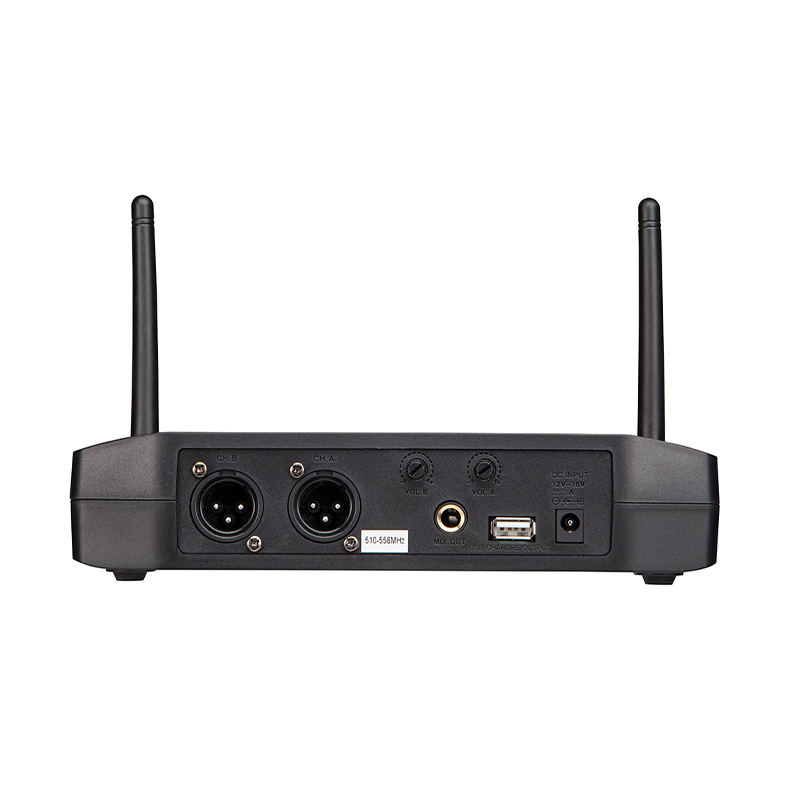

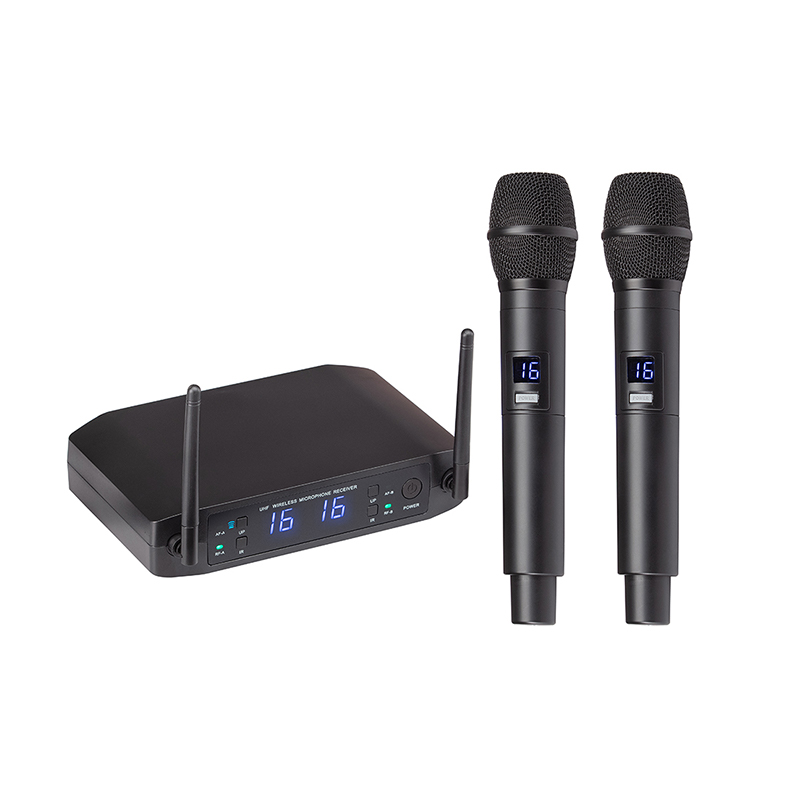

SOUNDSATION WF-U216 HH UHF DOUBLE 16-Channel Wireless System With Two Handheld Microphones
The WF-U216 is a UHF dual wireless microphone system with 16 channels each. Its main characteristics are reliability, audio quality and extreme simplicity of use. It’s been designed for all those professionals who need a ready-to-use tool, always. Despite its minimalist look, the WF-U216 is a concentrate of technology, capable of integrating a high-quality microphone preamp stage, a DSP-based audio processing, a PLL synthesis stage, and other functions in a single chip.
Specifications
| Carrier Frequency | UHF 520-550MHz |
| Frequency Stabilization | Automatic calibration |
| Dynamic Range | >90dB |
| Total Harmonic Distortion | <0.4% |
| Frequency Response | 40Hz-15KHz ±3dB |
| System Audio Output Level | Balanced 400mV; Unbalanced 400mV |
| System Packing Dimensions (WxDxH) | 380 x 285 x 65 mm |
| System Packing Gross Weight | 1.2 kg |
| Receiver Power Adapter | DC 12V / 1000mA |
| Receiver Consume Power | <4W |
| Receiver Signal/Noise Ratio | >95dB |
| Receiving Sensitivity | -95dBuV |
| Receiver De-Emphasis | 75uS |
| Receiver Size (WxDxH) | 210 x 155 x 43 mm |
| Receiver Antennas Height | 115 mm |
| Receiver Net Weight | 0.345 kg |
| Transmitter Power | 10mW (Max) |
| Transmitting Modulation Type | FM |
| Transmission Max Deviation | ±26KHz |
| Transmission Spurious Emission | >40dB |
| Transmitter Battery Voltage | 2×1.5V AA Alkaline Batteries or 2×1.2V Rechargeable |
| Transmitter Continuous Using | about 5 hours |
| Hand-held Mic. Size (W/DxH) | Ø33 (min) – Ø48 (max) x 248 mm |
| Hand-held Mic. Net Weight | 0.215 kg (batteries included) |
Additional information
| Weight | 1.1 kg |
|---|---|
| Brand | SOUNDSATION |
