BOSS Acoustic Singer Live Acoustic Amplifier

Description

BOSS Acoustic Singer Live Acoustic Amplifier

The Acoustic Singer Live takes the acoustic stage amp to new levels of sound quality and creative versatility. Incorporating BOSS’s latest advancements in amplifier research, this compact powerhouse produces rich, vibrant sound with unmatched punch and clarity. Independent channels are provided for acoustic guitar and vocal, and each is equipped with discrete analog input circuits and three-band EQ for studio-quality sound. And with additional features such as Acoustic Resonance, looping, automatic vocal harmonies, effects, and much more, the Acoustic Singer Live gives acoustic musicians everything they need to deliver inspiring and impactful live performances.

Specifications

Rated Power Output

• 60 W (Woofer: 50 W, Tweeter: 10 W)

Nominal Input Level

• MIC INPUT: -33 dBu (2.5 k ohms)
  GUITAR INPUT: -10 dBu (5 M ohms)
  AUX INPUT: -8 dBu (10 k ohms)

Speaker

• 16 cm (6.5 inches) Woofer x 1, 2.5 cm (1 inch) Dome Tweeter x 1

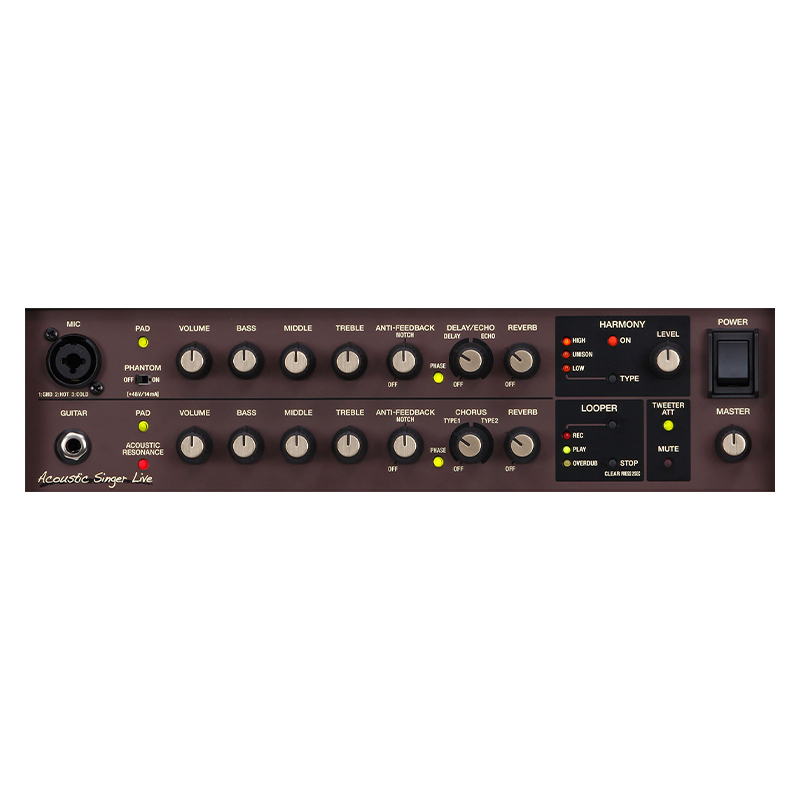

Controls

• POWER switch
  MASTER knob
  TWEETER ATT button
  MUTE button

  [MIC]
  PAD button
  PHANTOM switch
  VOLUME knob
  BASS knob
  MIDDLE knob
  TREBLE knob
  ANTI-FEEDBACK knob
  PHASE button
  DELAY/ECHO knob
  REVERB knob

  [GUITAR]
  PAD button
  ACOUSTIC RESONANCE button
  VOLUME knob
  BASS knob
  MIDDLE knob
  TREBLE knob
  ANTI-FEEDBACK knob
  PHASE button
  CHORUS knob
  REVERB knob

  [HARMONY]
  ON button
  TYPE button
  LEVEL knob

  [LOOPER]
  LOOPER button
  STOP/CLEAR button

  [AUX]
  LEVEL knob

  [DI/LINE OUT]
  MIC/MIX: OUT SELECT switch
  GUITAR/MIX: OUT SELECT switch

Indicators

• TWEETER ATT
  MUTE

  [MIC]
  PAD
  PHASE

  [GUITAR]
  PAD
  ACOUSTIC RESONANCE
  PAHSE

  [HARMONY]
  ON
  HIGH
  UNISON
  LOW

  [LOOPER]
  REC
  PLAY
  OVERDUB

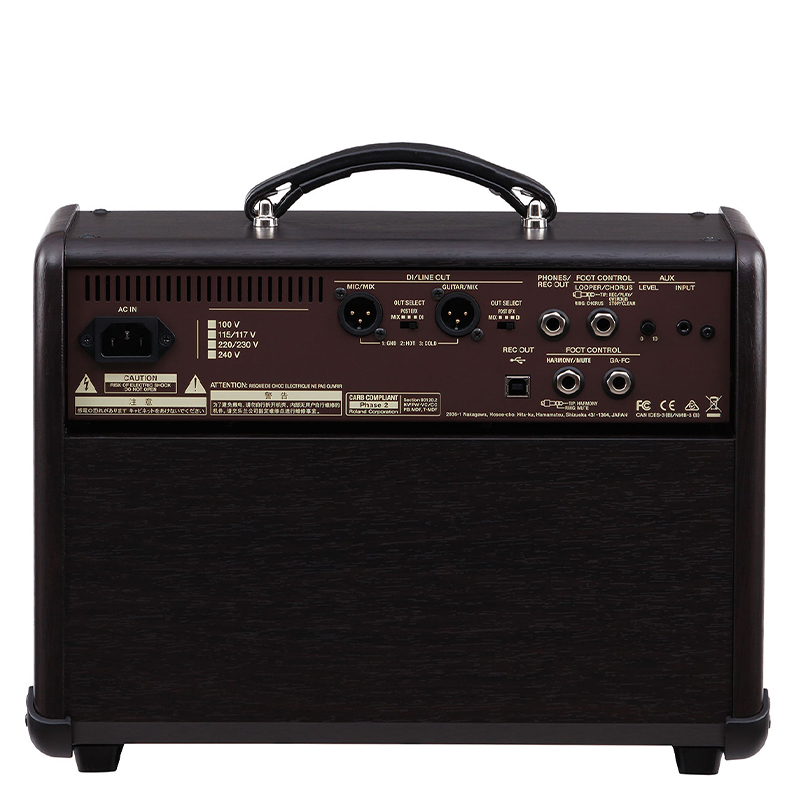

Connectors

• MIC jack: Combo type (XLR, 1/4-inch TRS phone type)
  GUITAR jack: 1/4-inch phone type
  AUX IN jack: Stereo miniature phone type
  PHONES/REC OUT jack: Stereo 1/4-inch phone type
  DI/LINE OUT MIC/MIX jack: XLR type
  DI/LINE OUT GUITAR/MIX jack: XLR type
  FOOT CONTROL LOOPER/CHORUS jack: 1/4-inch TRS phone type
  FOOT CONTROL HARMONY/MUTE jack: 1/4-inch TRS phone type
  GA-FC jack: 1/4-inch TRS phone type
  USB port: USB B type
  AC IN jack

Power Consumption

• 40 W

Accessories

• Owner’s manual
  Power cord
  GA-FC sticker
  Footswitch

Options (sold separately)

• Footswitch: FS-5U, FS-6, FS-7
  Expression pedal: FV-500L、FV-500H、Roland EV-5
  GA FOOT CONTROLLER: Roland GA-FC

Size And Weight

Width

• 367 mm
  14-1/2 inches

Depth

• 274 mm
  10-13/16 inches

Height

• 314 mm
  12-3/8 inches

Weight

• 10.5 kg
  23 lbs 3 oz
