Description
Boss EV-1-WL Wireless Expression Pedal
Take command of your MIDI music gear with the BOSS EV-1-WL, the world’s first wireless MIDI expression pedal. The EV-1-WL provides wireless foot control for BOSS products such as the EURUS GS-1, Waza-Air and Katana-Air, mobile music apps, and other devices that can receive CC messages via Bluetooth® MIDI. In addition, USB and MIDI TRS connectivity are on hand for wired control of computer music software and standard MIDI devices.
| SPECIFICATIONS | | Controls | POWER switch
Bluetooth button | | Indicator | POWER
Bluetooth

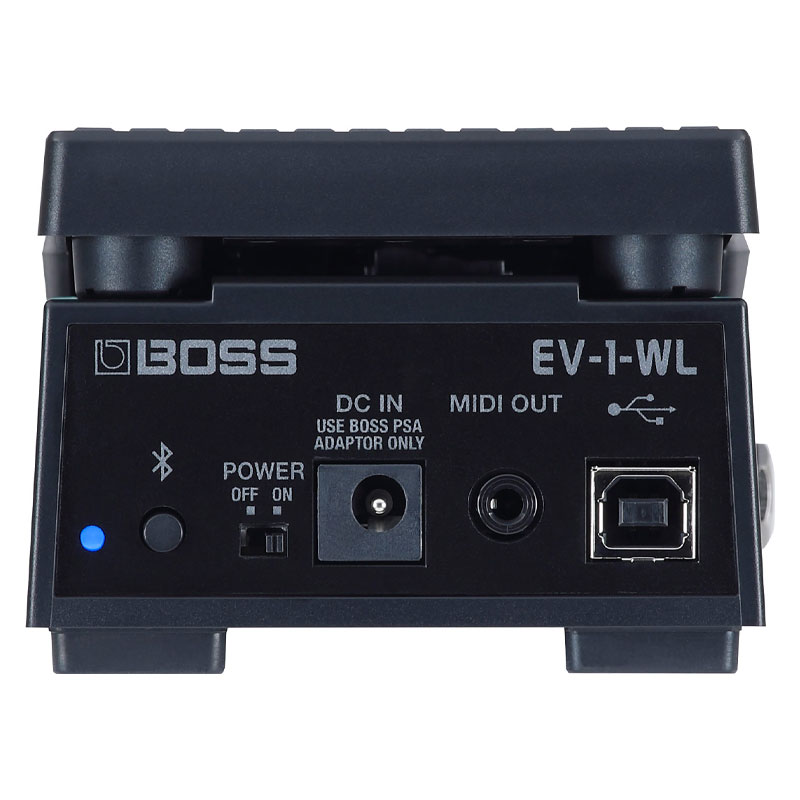

EXP SW | | Connectors | MIDI OUT jack: stereo miniature phone type
USB COMPUTER port: USB B type
CTL 1, 2 jack: 1/4-inch TRS phone type
DC IN jack | | Power Supply | Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately) | | Current Draw | 75 mA | | Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.) | Alkaline battery: 30 hours | | Accessories | Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (AA, LR6) x 2 | | Options (sold separately) | AC adaptor: PSA series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 |
|
| SIZE & WEIGHT | | Dimensions | 87 (W) x 200 (D) x 62 (H) mm
3-7/16 (W) x 7-7/8 (D) x 2-1/2 (H) inches(Maximum height)
87 (W) x 200 (D) x 92 (H) mm
3-7/16 (W) x 7-7/8 (D) x 3-5/8 (H) inches | | Weight | 600 g / 1 lb 6 oz
650 g / 1 lb 7 oz (including batteries) |
|
