EIKON ACOUSTIC INSTRUMENTS MICROPHONE WITH IN-LINE PRE-AMP

Description

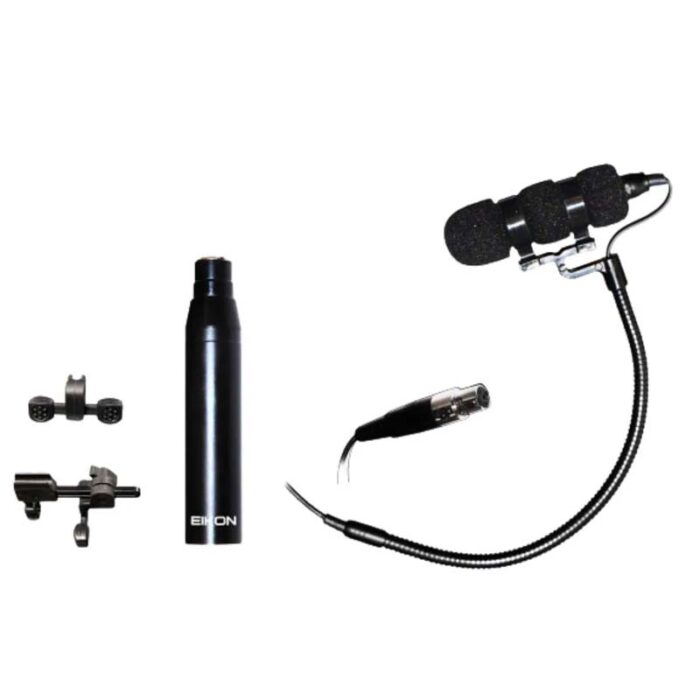

Eikon HCS30 Acoustic Instruments Microphone With In‑Line Pre‑Amp

Overview & Use Cases

• Lightweight miniature electret condenser clip-on microphone designed for acoustic instruments such as guitars, accordions, and bowed instruments

• Cardioid polar pattern ideal for stage use and environments with high SPL—provides strong isolation and feedback resistance

• Delivers a linear frequency response that ensures a natural, clear, and powerful tone

• Can be powered via the included in-line pre-amp, or connected directly to a bodypack transmitter

Technical Specifications

• Type: Back electret condenser

• Polar Pattern: Cardioid

• Frequency Response: 50 Hz – 16 kHz

• Sensitivity: –45 dB

• Maximum SPL (1% THD): 130 dB

• Signal-to-Noise Ratio: > 70 dB

• Impedance: 2000 Ω ± 30%

• Power Requirement: 48 V phantom power

• Cable Length: 1000 x 2 mm

• Color: BlackAccessories: Includes a windscreen .

Mounting & Compatibility

• Supplied with clip mounts for different instruments:

  • HCSB for violin (included)

  • HCSC for saxophone (included)

  • Optional mounts: HCSA for cello, HCSD for guitar

  • Web‑Ready Summary (No Categories Format)

Eikon HCS30 Acoustic Instruments Microphone With In‑Line Pre‑Amp – A lightweight, miniature electret condenser clip-on mic that’s perfect for acoustic instruments like guitar, accordion, and bowed strings. It boasts a cardioid pickup, natural linear tone, high gain-before-feedback, and rugged stage-ready performance. Powered via its included in-line pre-amp or directly to a bodypack transmitter. Features a 50 Hz–16 kHz range, –45 dB sensitivity, 130 dB max SPL, and includes a windscreen plus various clip mounts for violin, sax, and (optionally) cello or guitar.
