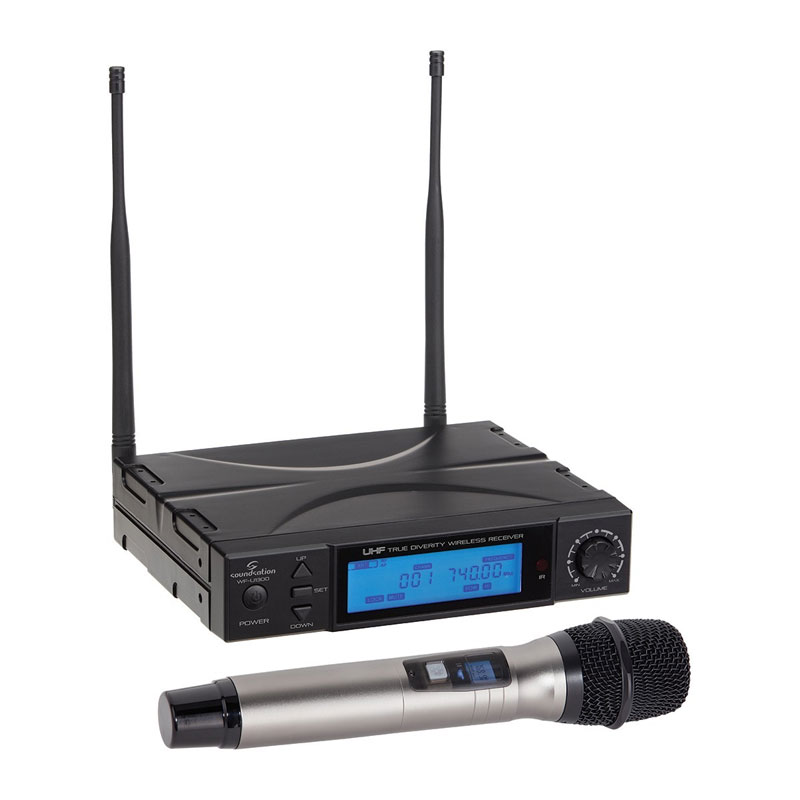

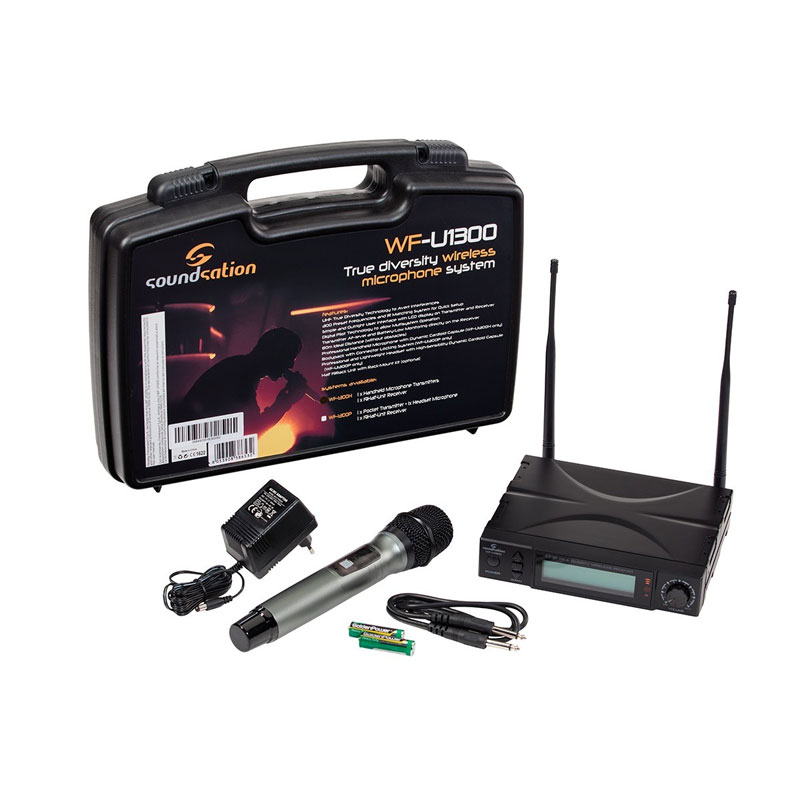

SOUNDSATION [WF-U1300H] True Diversity 300 Channels Wireless Microphone System with Handheld Microphone
![SOUNDSATION [WF-U1300H] True Diversity 300 Channels Wireless Microphone System with Handheld Microphone](https://www.musicgallery.com.cy/wp-content/uploads/2022/04/soundsation_logo.png "SOUNDSATION [WF-U1300H] True Diversity 300 Channels Wireless Microphone System with Handheld Microphone"){kind=logo}
€269.00
In stock
Description
SOUNDSATION [WF-U1300H] True Diversity 300 Channels Wireless Microphone System with Handheld Microphone
WF-U1300 is a UHF True Diversity professional wireless microphone with 300 channels and a simple and intuitive user interface. “True Diveristy” means that the receiving system is equipped with two antennas, two receive circuits and a device capable of continuously choose the stronger and interference-free signal. This system is built with leading technology that allows the integration of many of the major functions – such as amplification section, digital signal processing, PLL (Phase-Locked Loop) frequency synthesis, and more
| Carrier Frequency | UHF823-832MHz |
| Frequency Stabilization | < ±30ppm |
| Dynamic Range | >90dB |
| Total Harmonic Distortion | <0.5% |
| Frequency Response | 40Hz-15KHz ±3dB |
| Audio Output Level | Balanced 400mV; Unbalanced 400mV |
| Packing Dimensions (WxHxD) | 435 x 104 x 321 mm |
| Packing Gross Weight | 2.5 kg |

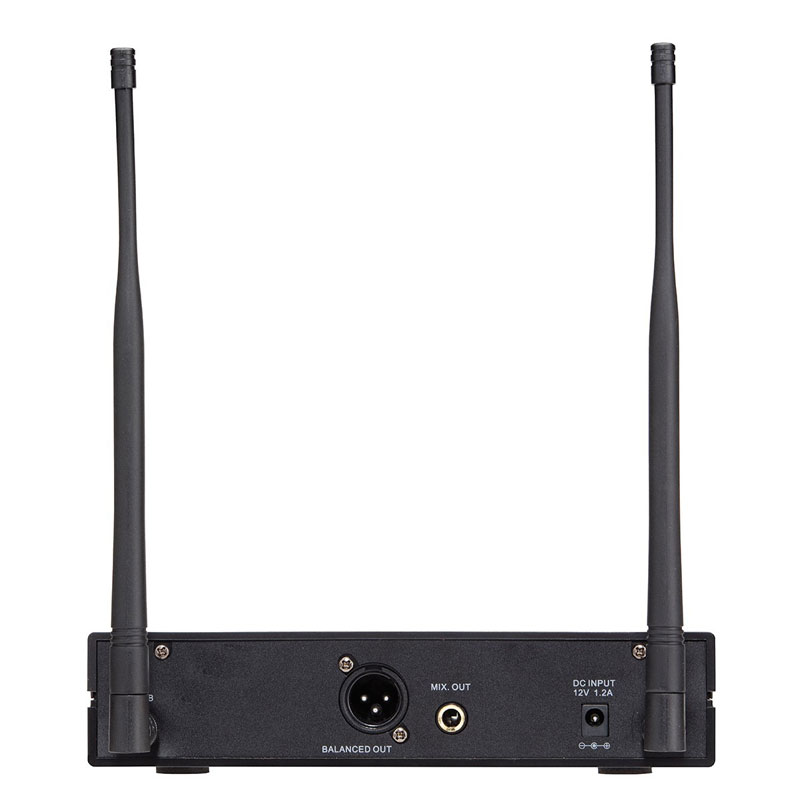

| RECEIVER | |
| Power Supply | DC 17V / 300mA |
| Consume Power | 5W |
| Signal/Noise Ratio | >90dB |
| Receiving Sensitivity | 5dBuV |
| De-Emphasis | 75uS |
| Dimensions (WxHxD) | 210 x 43 x 187 mm (antennas not included) |
| Antenna | 255 mm (not bent) |
| Net Weight | 0.53 kg |

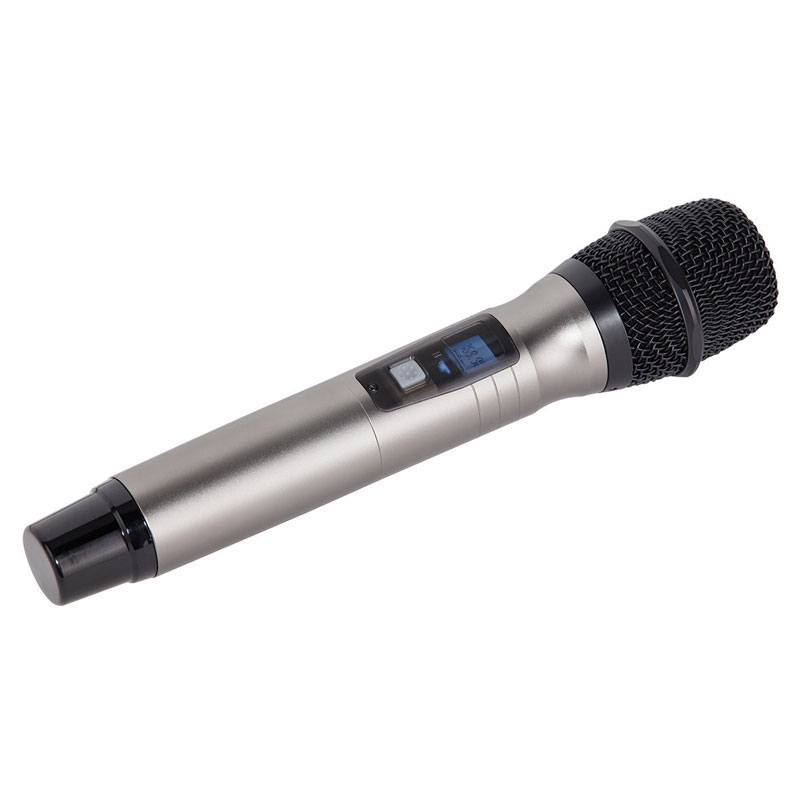

| HANDHELD TRANSMITTERS | |
| Transmitter Power | 10mW (Max) |
| Modulation Type | FM |
| Max Deviation | ±25KHz |
| Spurious Emission | >40dB |
| Battery Voltage | 3V (2×1.5V AA Batteries) |
| Continuous Using | 5 hours |
| Dimensions (W/DxH) | Ø35 (min) – Ø53 (max) x 260 mm |
| Net Weight | 0.335 kg (batteries included) |
Additional information
| Weight | 2.3 kg |
|---|---|
| Brand |
