Soundsation WF-U2302HH Dual Wireless Microphone System With 2 Handheld Mics 630-660MHz
Product Overview & Key Features
Soundsation WF-U2302HH Dual Wireless Microphone System With 2 Handheld Mics 630-660MHz
€299.00
In stock
Description
True Diversity UHF System: Operates in the 630–660 MHz band, featuring two antennas and receiving circuits that automatically switch to the strongest, interference-free signal
300 Preset Channels per Mic: Each handheld transmitter can access a wide range of preset frequencies, enabling flexible operation and easy multi-system use
Automatic Frequency Scan & IR Sync: Simplifies setup with quick channel scanning and infrared synchronization between receiver and transmitters
Digital Pilot Technology: Enables monitoring of RF signal levels and transmitter battery status directly on the receiver, and supports operating multiple systems simultaneously

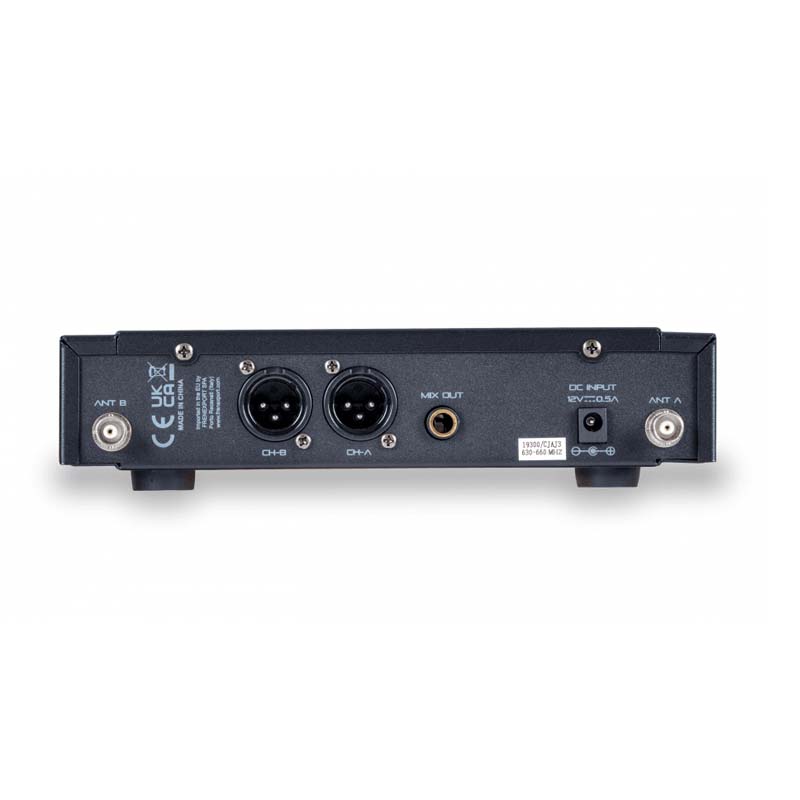

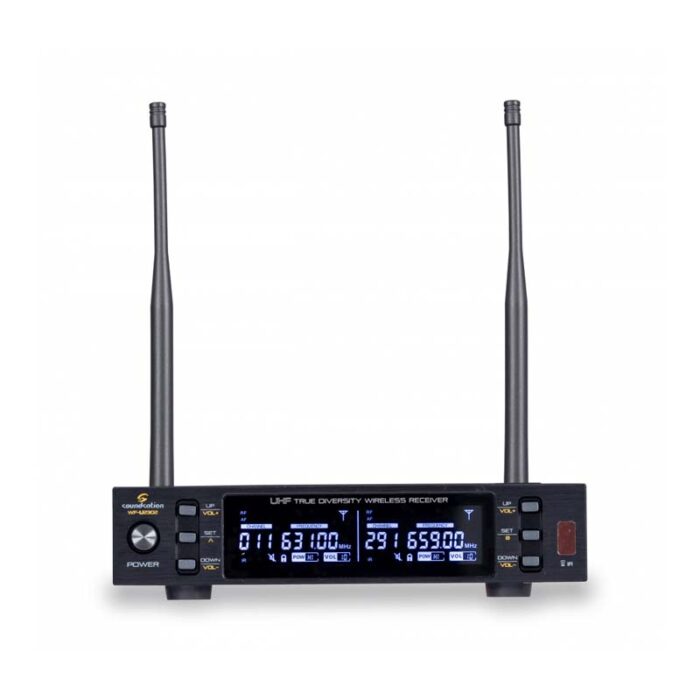

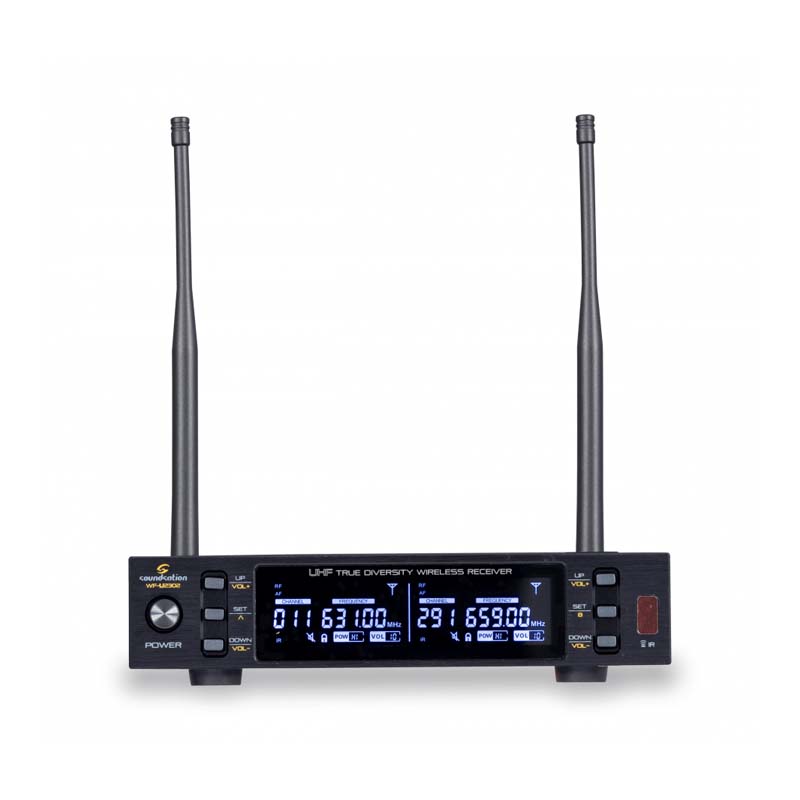

Range & Build: Up to ~80 m under ideal conditions. It includes a half-19″ rack-mountable metal receiver with detachable antennas and optional rack kits
Audio Specs: Frequency response spans 40 Hz–15 kHz ±3 dB, dynamic range exceeds 90 dB; outputs are balanced and unbalanced at ~400 mV
Summary Table
| Feature | Details |
|---|---|
| Frequency Band | UHF 630–660 MHz |
| Channels | 300 preset per mic |
| Technology | True Diversity, PLL synthesis, IR sync |
| Multi-System Capability | Yes, via Digital Pilot |
| Range (Ideal Conditions) | Up to ~80 m |
| Audio Range | 40 Hz–15 kHz ±3 dB |
| Output Level | 400 mV (balanced/unbalanced) |
| Receiver Form Factor | Half-19″ rack with detachable antennas |
| Power (Transmitter) | 2×AA batteries (approx. 5 hrs runtime) |
Additional Notes
The system is part of the WF-U2302 series, available in variants:

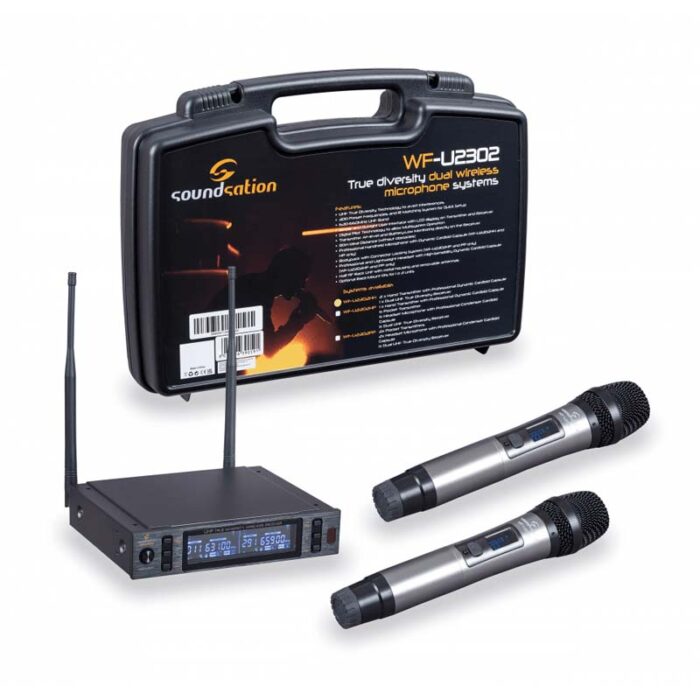

WF-U2302HH: 2 handheld mics (this model)
WF-U2302HP: 1 handheld + 1 bodypack/headset
WF-U2302PP: 2 bodypack/headsets
Additional information
| Weight | 2.5 kg |
|---|---|
| Brand | SOUNDSATION |
