IBANEZ TS808 Tube Screamer Overdrive Pro Pedal

Description

IBANEZ TS808 Tube Screamer Overdrive Pro Pedal

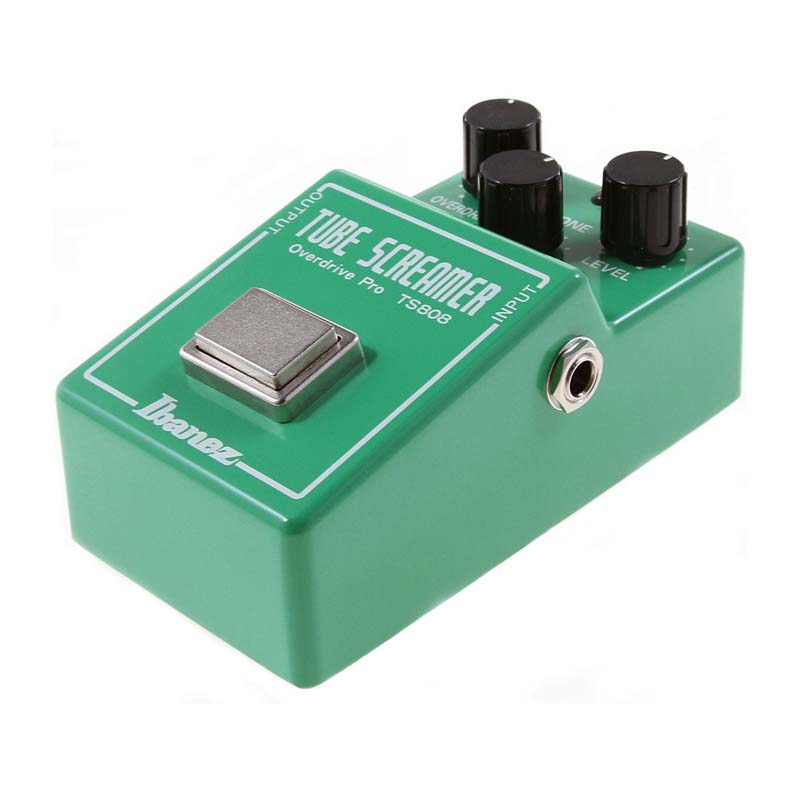

The Ibanez TS808 Tube Screamer Overdrive Pro is an iconic overdrive pedal, revered for its smooth, natural overdrive that enhances the guitar’s tone without compromising its original character. Introduced in the late 1970s, the TS808 has been a favorite among guitarists seeking a warm, tube-like overdrive.​

Key Features:

• Controls: The TS808 is equipped with three knobs—Overdrive, Tone, and Level—allowing precise control over the amount of overdrive, tonal quality, and output volume.​

• Circuitry: It features the original JRC 4558D integrated circuit (IC) chip, renowned for its contribution to the pedal’s signature sound. ​

• Design: The pedal maintains its classic green enclosure and the distinctive square footswitch, staying true to its original aesthetics.

Specifications:

• Input Impedance: 500K ohms​

• Output Impedance: 10K ohms​

• Maximum Output Level: 0 dBm​

• Maximum Gain: +30 dB​

• Equivalent Input Noise: -100 dBm​

• Power Supply: Operates on a 9V battery or an external AC adapter (DC 9V, center-negative).
