ROLAND RC-10R Loop Station

Description

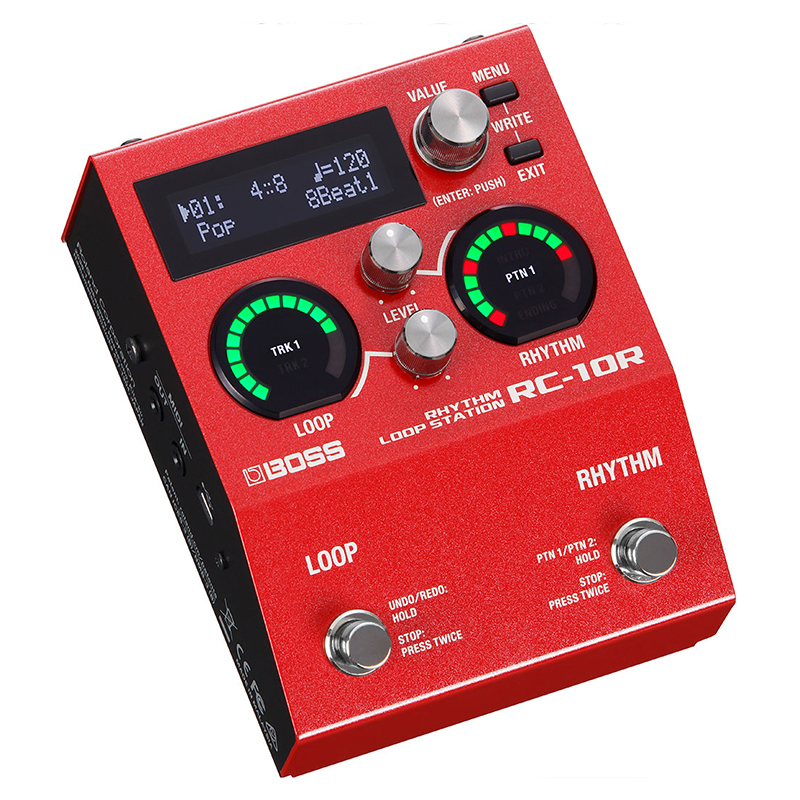

ROLAND RC-10R Loop Station

Combining song-based looping and organic rhythms in a compact package, the RC-10R brings fresh inspiration to live performances, songwriting sessions, and daily practice. This next-generation Loop Station is a real-time creation machine, enabling you to develop spontaneous music that moves and grooves with two unique song sections, intros/endings, and rhythm fills. Onboard controls and visual loop indicators provide easy, self-contained operation, while expanded control is possible with external switches and MIDI. A vast rhythm library is on hand to cover nearly any music genre, and you can even import your own rhythms to personalize the RC-10R for specific songs and styles.

SPECIFICATIONS (LOOPER)

Sampling Frequency

• 44.1 kHz

AD/DA Conversion

• 32 bits

Processing

• 32-bit floating point

Recording/Playback

• Maximum Recording Time: Approx. 6 hours (stereo)
• Maximum Phrase Memory: 99
• Number of Tracks: 2
• Data Format: WAV (44.1 kHz, 32-bit float, stereo)

SPECIFICATIONS (RHYTHM)

Rhythm Type

• 280 types or greater

Rhythm Control

• Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, Ending

Rhythm Kit

• 16 types

Maximum Polyphony

• 24 voices

Effect

• Reverb (only for rhythm part)

SPECIFICATIONS (COMMON)

Memory

• 99

Nominal Input Level

• INPUT A/MONO, B: -10 dBu

Maximum Input Level

• INPUT A/MONO, B: +8 dBu

Input Impedance

• INPUT A/MONO, B: 1 M ohm

Nominal Output Level

• OUTPUT A/MONO, B: -10 dBu

Maximum Output Level

• OUTPUT A/MONO, B: +8 dBu

Output Impedance

• OUTPUT A/MONO, B: 1 k ohms

Recommended Load Impedance

• OUTPUT A/MONO, B: 10 k ohms or greater

Bypass

• Buffered bypass

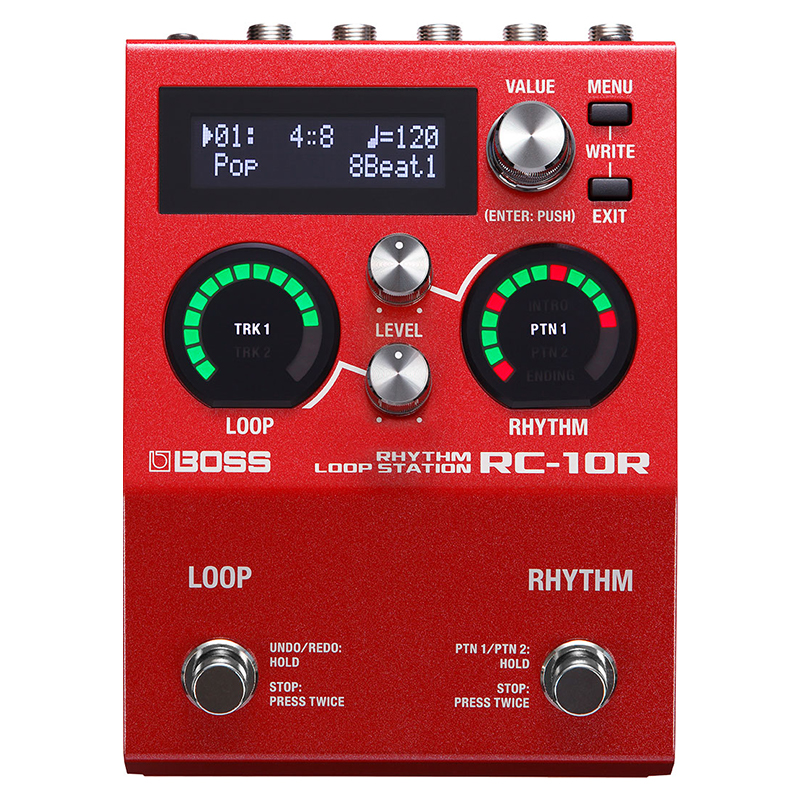

Controls

• RHYTHM switch, LOOP switch
• VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob
• MENU button, EXIT button

Display

• 16 characters x 2 lines LCD (with backlit)

Indicator

• RHYTHM indicator, LOOP indicator

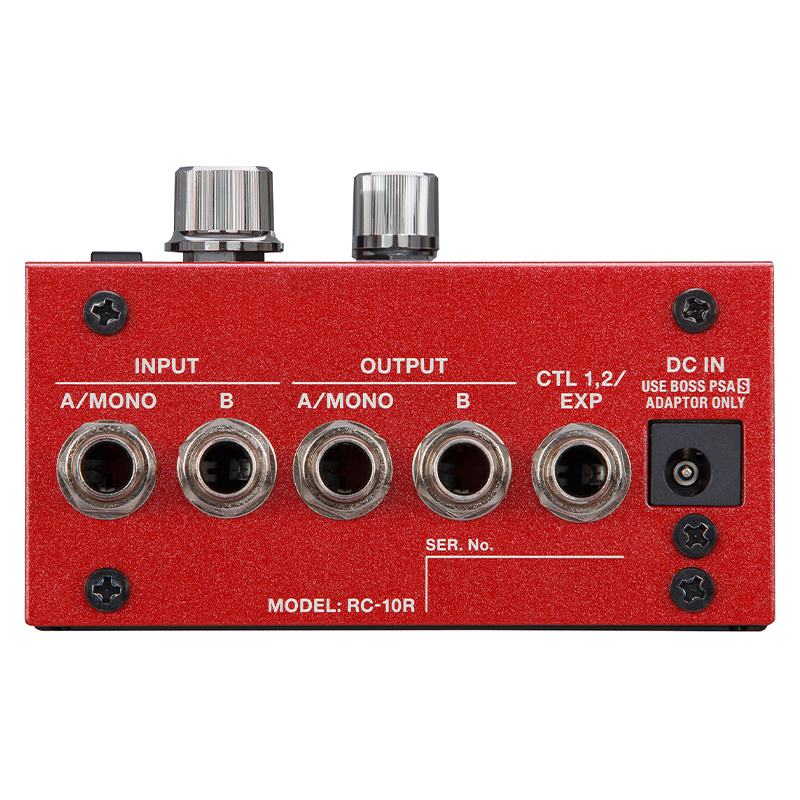

Connectors

• INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
• CTL 1, 2/EXP jack: 1/4-inch TRS phone type

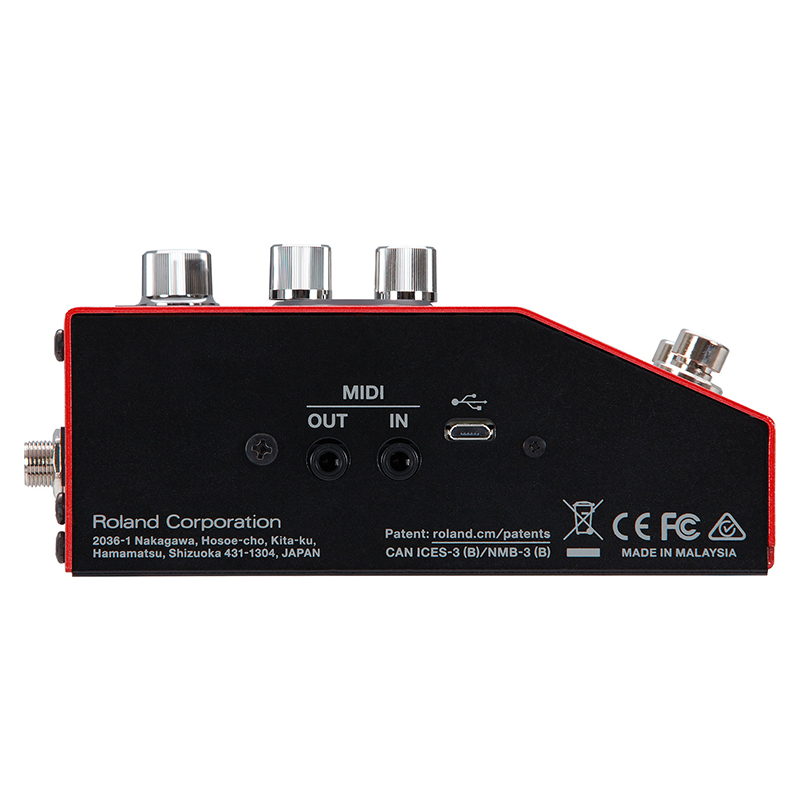

• MIDI (IN, OUT) jacks: stereo miniature type
• DC IN jack
• USB COMPUTER port: USB micro B type

Power Supply

• AC adaptor

Current Draw

• 250 mA

Accessories

• Owner’s Manual
• Leaflet “USING THE UNIT SAFELY”
• AC adaptor
• Rubber foot x 4

Options (sold separately)

• Footswitch: FS-5U
• Dual footswitch: FS-6, FS-7
• Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• TRS/MIDI connecting cable: BMIDI-5-35

SIZE AND WEIGHT

Width

• 101 mm

Depth

• 138 mm

Height (excluding rubber foot)

• 63 mm

Height (including rubber foot)

• 65 mm

Weight (excluding AC adaptor)

• 620 g
